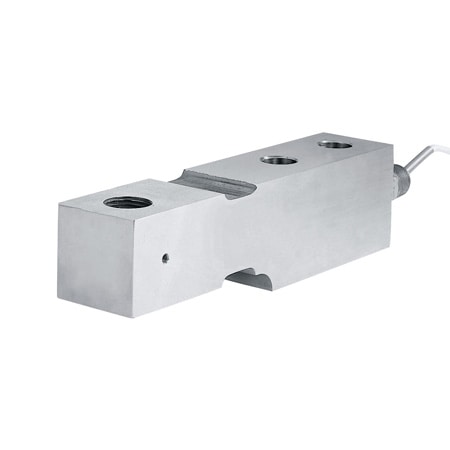

스테인리스 스틸, 과부하 방지 장치가 있는 빔 로드셀
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 18개의 상품
| 제품 번호 / 가격 | Brand | 5-Point Calibration | Cable Length | Calibration Option | Electrical Connection | Electrical Output | Force Type | Full Scale Deflection | Height | Hysteresis | Input Resistance | Interchangeability | Length | Linearity | Load Cell Capacity | Load Cell Type | Materials | Operating Temperature, Max | Operating Temperature, Min | Output Resistance | Overload, Max | Process Temperature, Max | Process Temperature, Min | Repeatability | Safe Overload | Supply Power Note | Supply Voltage | Thermal Span Effect | Thermal Zero Effect | Weight | Width | Wiring/Connector Table | Zero/Balance Error | Mating Connector | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LC511-5001,204,840 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 500 lbF, 500 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC511-7501,211,520 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 750 lbF, 750 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC511-2001,211,520 원6 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 200 lbF, 200 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC511-10K1,562,480 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | Compression | 0.02 in | 1.5 in | ± 0.05% | 360 Ω min | 0.0025 | 7.75 in | ± 0.03% | 10000 lbF | Bending Beam | 17-4 PH Stainless Steel, Stainless Steel | 82 °C | -34 °C | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.02% | 150% FS | 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc | ± 0.0018% FSO/°C | ± 0.0018% FSO/°C | 5 lb | 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1% | MIL-26482-I 10-6S | |
LC501-7501,243,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 750 lbF, 750 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC511-1001,394,550 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 100 lbF, 100 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC501-5001,211,520 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 500 lbF, 500 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-2001,243,100 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 200 lbF, 200 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-20K2,773,000 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 2.5 in, 2.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 9.5 in, 9.5 in | ± 0.03%, ± 0.03% | 20000 lbF, 20000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 11 lb, 11 lb | 2 in, 2 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-10K1,553,870 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 7.75 in, 7.75 in | ± 0.03%, ± 0.03% | 10000 lbF, 10000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 5 lb, 5 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-1001,211,520 원5 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1 in, 1 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 4.75 in, 4.75 in | ± 0.03%, ± 0.03% | 100 lbF, 100 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 2 lb, 2 lb | 1 in, 1 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC511-5K1,235,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft | 5 POINT NIST | MIL-26482-I 10-6P | 3 mV/V | Compression | 0.02 in | 1.5 in | ± 0.05% | 360 Ω min | 0.0025 | 6.75 in | ± 0.03% | 5000 lbF | Bending Beam | 17-4 PH Stainless Steel, Stainless Steel | 82 °C | -34 °C | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.02% | 150% FS | 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc | ± 0.0018% FSO/°C | ± 0.0018% FSO/°C | 4 lb | 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1% | MIL-26482-I 10-6S | |
LC511-1K1,235,760 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 6.75 in, 6.75 in | ± 0.03%, ± 0.03% | 1000 lbF, 1000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 4 lb, 4 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC511-2K1,422,460 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 0 ft, 0 ft | 5 POINT NIST, 5 POINT NIST | MIL-26482-I 10-6P, MIL-26482-I 10-6P | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 6.75 in, 6.75 in | ± 0.03%, ± 0.03% | 2000 lbF, 2000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 4 lb, 4 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | MIL-26482-I 10-6S, MIL-26482-I 10-6S | |
LC501-5K1,242,630 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 6.75 in, 6.75 in | ± 0.03%, ± 0.03% | 5000 lbF, 5000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 4 lb, 4 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-3K1,242,630 원10 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 6.75 in, 6.75 in | ± 0.03%, ± 0.03% | 3000 lbF, 3000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 4 lb, 4 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-1K1,242,630 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression), 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft, 15 ft | 5 POINT NIST, 5 POINT NIST | Cable, Cable | 3 mV/V, 3 mV/V | Compression, Compression | 0.02 in, 0.02 in | 1.5 in, 1.5 in | ± 0.05%, ± 0.05% | 360 Ω min, 360 Ω min | 0.0025, 0.0025 | 6.75 in, 6.75 in | ± 0.03%, ± 0.03% | 1000 lbF, 1000 lbF | Bending Beam, Bending Beam | 17-4 PH Stainless Steel, Stainless Steel, 17-4 PH Stainless Steel, Stainless Steel | 82 °C, 82 °C | -34 °C, -34 °C | 350 ± 10 Ω, 350 ± 10 Ω | 300% FS, 300% FS | 71 °C, 71 °C | 16 °C, 16 °C | ± 0.02%, ± 0.02% | 150% FS, 150% FS | 10 Vdc, 15 Vdc maximum, 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc, 10 to 15 Vdc | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | ± 0.0018% FSO/°C, ± 0.0018% FSO/°C | 4 lb, 4 lb | 1.5 in, 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input, Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1%, ± 1% | - | |
LC501-2K1,235,760 원8 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | 0%, 50%, 100%, 50%, 0% (in Compression) | 15 ft | 5 POINT NIST | Cable | 3 mV/V | Compression | 0.02 in | 1.5 in | ± 0.05% | 360 Ω min | 0.0025 | 6.75 in | ± 0.03% | 2000 lbF | Bending Beam | 17-4 PH Stainless Steel, Stainless Steel | 82 °C | -34 °C | 350 ± 10 Ω | 300% FS | 71 °C | 16 °C | ± 0.02% | 150% FS | 10 Vdc, 15 Vdc maximum | 10 to 15 Vdc | ± 0.0018% FSO/°C | ± 0.0018% FSO/°C | 4 lb | 1.5 in | Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input | ± 1% | - |
