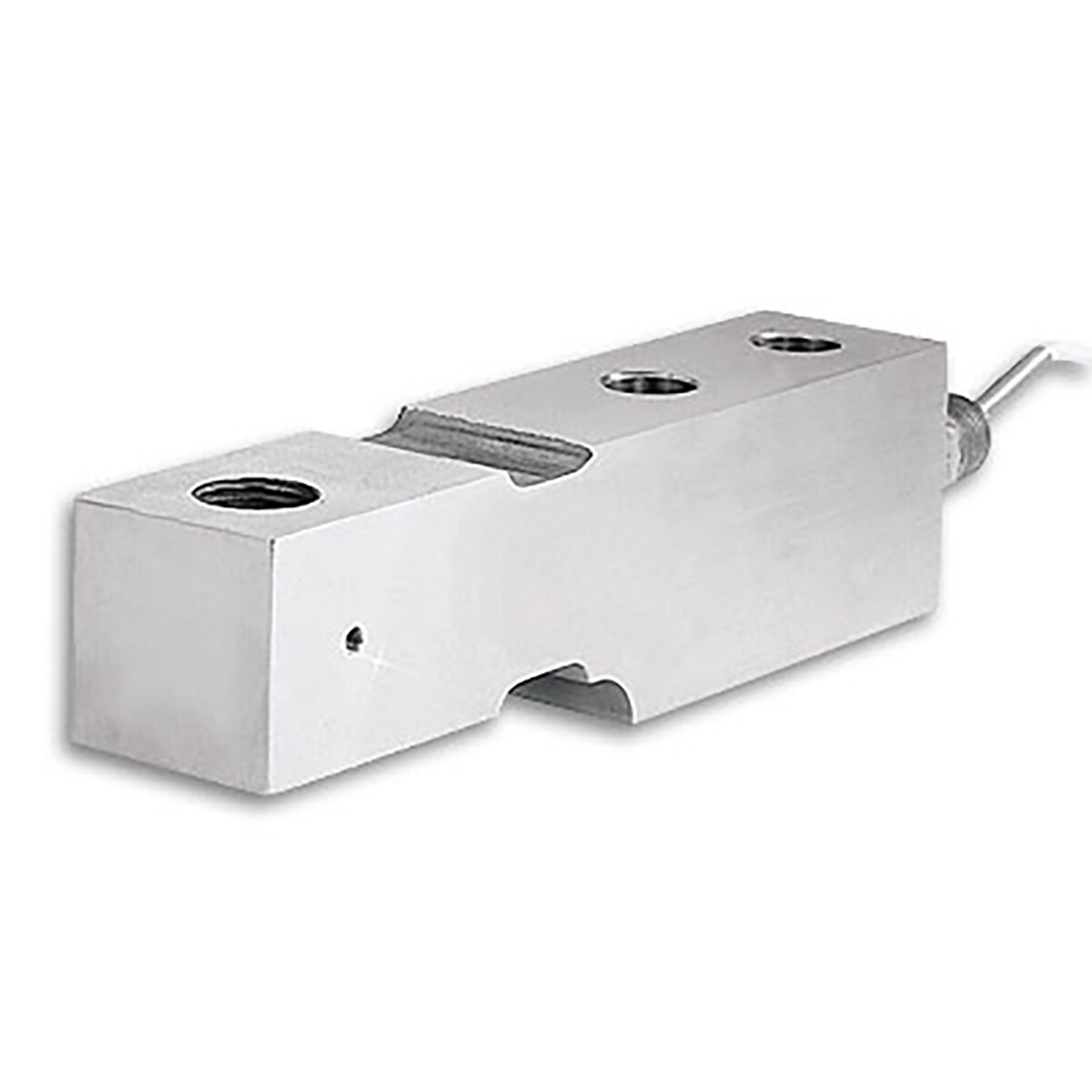

DwyerOmegaLC501
LC501-2K
2,000 lbf, ± 0.03%, Linearity, 3 mV/V Output, Cable
- 가격
- 1,235,760 원
- VAT 10%
- 123,576 원
- 총 금액
- 1,359,336 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 8 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
5-Point Calibration:0%, 50%, 100%, 50%, 0% (in Compression)
Cable Length:15 ft
Calibration Option:5 POINT NIST
Electrical Connection:Cable
Electrical Output:3 mV/V
Force Type:Compression
Full Scale Deflection:0.02 in
Height:1.5 in
Hysteresis:± 0.05%
Input Resistance:360 Ω min
Interchangeability:0.0025
Length:6.75 in
Linearity:± 0.03%
Load Cell Capacity:2000 lbF
Load Cell Type:Bending Beam
Materials:17-4 PH Stainless Steel, Stainless Steel
Operating Temperature, Max:82 °C
Operating Temperature, Min:-34 °C
Output Resistance:350 ± 10 Ω
Overload, Max:300% FS
Process Temperature, Max:71 °C
Process Temperature, Min:16 °C
Repeatability:± 0.02%
Safe Overload:150% FS
Supply Power Note:10 Vdc, 15 Vdc maximum
Supply Voltage:10 to 15 Vdc
Thermal Span Effect:± 0.0018% FSO/°C
Thermal Zero Effect:± 0.0018% FSO/°C
Weight:4 lb
Width:1.5 in
Wiring/Connector Table:Green: (+) Output; White: (-) Output; Black: (-) Input; Red: (+) Input
Zero/Balance Error:± 1%
