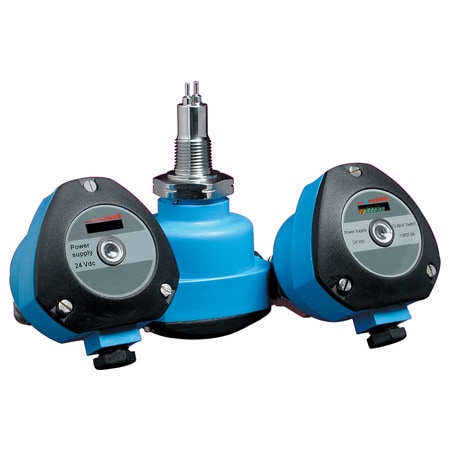

열 분산 유량 스위치
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Adjustments | Cable Length | Diameter | Electrical Connection | Enclosure Ratings | Flow Indication | Flow Rate Note | Height | Insertion Length | Insertion Length Note | Linear Flow Rate, Max | Linear Flow Rate, Min | Materials | Media Compatibility | Operating Pressure, Max | Operating Temperature, Max | Operating Temperature, Min | Pipe Size, Max | Pipe Size, Min | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Repeatability | Response Time | Supply Power Note | Supply Voltage | Switch Rating | Switch Rating Note | Switch Type | Weight | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
FSW-7113가격 문의15 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 10 % | Potentiometer | 6.5 ft | 3.5 in | Cable Gland with Cable | IP65, NEMA 4 | Green LED: Flow rate above setpoint, Yellow LED: Flow is at above setpoint, Red LED: Flow is below setpoint | Gas Velocity: 0.16 to 49 ft/s, Liquid Velocity: 0.09 to 9.84 ft/s | 2.5 in | 3 in | - | 49 ft/s | 0.16 ft/s | Glass-Filled Nylon, 316 Stainless Steel | Gases, Liquids | 4351 psi | 60 °C | -20 °C | 4 in | 1 in | 1/2 in | NPT Male | 80 °C | -20 °C | ±1% | 1 to 10 sec | 24 Vdc ±10% | 24 Vdc | 5 A | 5 A, 250 Vac | SPDT NO/NC, Selectable | 1.5 lb | |
FSW-71121,392,650 원13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 10 % | Potentiometer | 6.5 ft | 3.5 in | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA 4 | Green LED: Flow rate above setpoint, Yellow LED: Flow is at above setpoint, Red LED: Flow is below setpoint | Gas Velocity: 0.16 to 49 ft/s, Liquid Velocity: 0.09 to 9.84 ft/s | 2.5 in | 2 in | 51 mm (2") for 1 to 4" pipe | 49 ft/s | 0.16 ft/s | Glass-Filled Nylon, 316 Stainless Steel | Gases, Liquids | 4351 psi | 60 °C | -20 °C | 4 in | 1 in | 1/2 in | NPT Male | 80 °C | -20 °C | ±1% | 1 to 10 sec | 24 Vdc ±10% | 24 Vdc | 5 A | 5 A, 250 Vac | SPDT NO/NC, Selectable | 1.5 lb | |
FSW-62121,677,980 원13 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 10 % | Potentiometer | 6.5 ft | 3.5 in | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA 4 | Green LED: Flow rate above setpoint, Yellow LED: Flow is at above setpoint, Red LED: Flow is below setpoint | Gas Velocity: 0.16 to 49 ft/s, Liquid Velocity: 0.09 to 9.84 ft/s | 2.5 in | 2 in | 51 mm (2") for 1 to 4" pipe | 49 ft/s | 0.16 ft/s | Glass-Filled Nylon, 316 Stainless Steel | Gases, Liquids | 4351 psi | 60 °C | -20 °C | 4 in | 1 in | 3/4 in | NPT Male | 80 °C | -20 °C | ±1% | 1 to 10 sec | 85 to 240 Vac (50/60 Hz) | 85 to 240 Vac | 5 A | 5 A, 250 Vac | SPDT NO/NC, Selectable | 1.5 lb | |
FSW-71111,677,980 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 10 % | Potentiometer | 6.5 ft | 3.5 in | 1/2 in NPT female Conduit with Screw Terminal block | IP65, NEMA 4 | Green LED: Flow rate above setpoint, Yellow LED: Flow is at above setpoint, Red LED: Flow is below setpoint | Gas Velocity: 0.16 to 49 ft/s, Liquid Velocity: 0.09 to 9.84 ft/s | 2.5 in | 1.375 in | 35 mm (1³⁄₈") for ¹⁄₂ to 1" pipe | 49 ft/s | 0.16 ft/s | Glass-Filled Nylon, 316 Stainless Steel | Gases, Liquids | 4351 psi | 60 °C | -20 °C | 4 in | 1 in | 1/2 in | NPT Male | 80 °C | -20 °C | ±1% | 1 to 10 sec | 24 Vdc ±10% | 24 Vdc | 5 A | 5 A, 250 Vac | SPDT NO/NC, Selectable | 1.5 lb |
