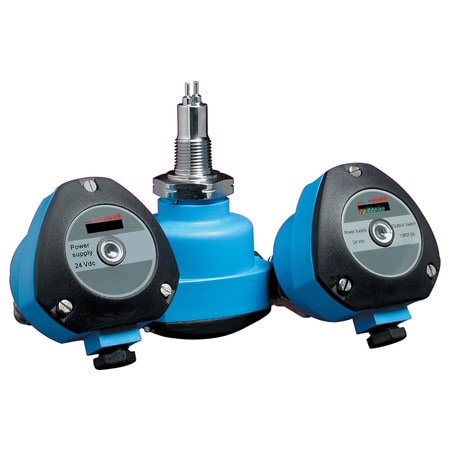

DwyerOmegaFSW6000-7000-Series
FSW-7112
- 가격
- 1,392,650 원
- VAT 10%
- 139,265 원
- 총 금액
- 1,531,915 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 13 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 10 %
Adjustments:Potentiometer
Cable Length:6.5 ft
Diameter:3.5 in
Electrical Connection:1/2 in NPT female Conduit with Screw Terminal block
Enclosure Ratings:IP65, NEMA 4
Flow Indication:Green LED: Flow rate above setpoint, Yellow LED: Flow is at above setpoint, Red LED: Flow is below setpoint
Flow Rate Note:Gas Velocity: 0.16 to 49 ft/s, Liquid Velocity: 0.09 to 9.84 ft/s
Height:2.5 in
Insertion Length:2 in
Insertion Length Note:51 mm (2") for 1 to 4" pipe
Linear Flow Rate, Max:49 ft/s
Linear Flow Rate, Min:0.16 ft/s
Materials:Glass-Filled Nylon, 316 Stainless Steel
Media Compatibility:Gases, Liquids
Operating Pressure, Max:4351 psi
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Pipe Size, Max:4 in
Pipe Size, Min:1 in
Process Connection Size:1/2 in
Process Connection Type:NPT Male
Process Temperature, Max:80 °C
Process Temperature, Min:-20 °C
Repeatability:±1%
Response Time:1 to 10 sec
Supply Power Note:24 Vdc ±10%
Supply Voltage:24 Vdc
Switch Rating:5 A
Switch Rating Note:5 A, 250 Vac
Switch Type:SPDT NO/NC, Selectable
Weight:1.5 lb
