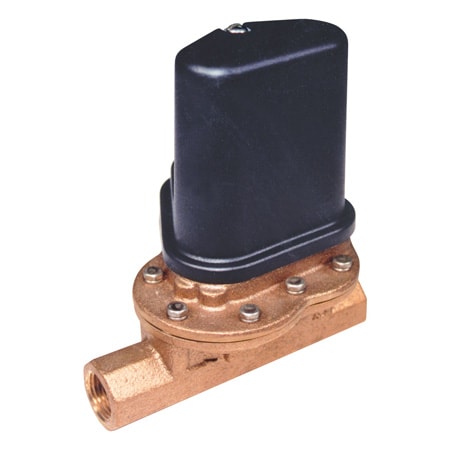

FSW30-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 3개의 상품

제품 번호 / 가격	Brand	Electrical Connection	Electrical Connection Note	Height	Materials	Media Compatibility	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Pressure Drop, Max	Pressure Drop, Min	Process Connection Size	Process Connection Type	Sensitivity	Switch Rating	Switch Rating Note	Switch Type	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min	Weight	Width
FSW-31A1,001,960 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	5.63 in	Brass, Stainless Steel, Plastic, Bronze	Water	300 psi	82 °C	4 °C	2 psi	-	1 in	NPT Female	5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	70 GPM	6 GPM	3.5 lb	4.94 in
FSW-32A852,250 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	5.63 in	Brass, Stainless Steel, Plastic, Bronze	Water	300 psi	82 °C	4 °C	15 psi	2 psi	1 in	NPT Female	5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	8 GPM	4 GPM	3.5 lb	4.94 in
FSW-30A1,220,940 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Cable Gland for 1/4 in Cable with Screw Terminal block	Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"	5.63 in	Brass, Stainless Steel, Plastic, Bronze	Water	300 psi	82 °C	4 °C	5 psi	1 psi	1/2 in	NPT Female	5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)	15 A	15 A @ 125 or 250 Vac; 10,000,000 operations median	SPDT NO/NC, Selectable	8 GPM	0.12 GPM	3.5 lb	4.94 in

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Electrical Connection

Electrical Connection Note

Height

Materials

Media Compatibility

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Pressure Drop, Max

Pressure Drop, Min

Process Connection Size

Process Connection Type

Sensitivity

Switch Rating

Switch Rating Note

Switch Type

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Weight

Width

수량 / 장바구니

FSW-31A1,001,960 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

5.63 in

Brass, Stainless Steel, Plastic, Bronze

Water

300 psi

82 °C

4 °C

2 psi

1 in

NPT Female

5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

70 GPM

6 GPM

3.5 lb

4.94 in

FSW-32A852,250 원7 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

5.63 in

Brass, Stainless Steel, Plastic, Bronze

Water

300 psi

82 °C

4 °C

15 psi

2 psi

1 in

NPT Female

5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

8 GPM

4 GPM

3.5 lb

4.94 in

FSW-30A1,220,940 원4 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Cable Gland for 1/4 in Cable with Screw Terminal block

Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"

5.63 in

Brass, Stainless Steel, Plastic, Bronze

Water

300 psi

82 °C

4 °C

5 psi

1 psi

1/2 in

NPT Female

5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)

15 A

15 A @ 125 or 250 Vac; 10,000,000 operations median

SPDT NO/NC, Selectable

8 GPM

0.12 GPM

3.5 lb

4.94 in
