DwyerOmegaFSW30-Series
FSW-32A

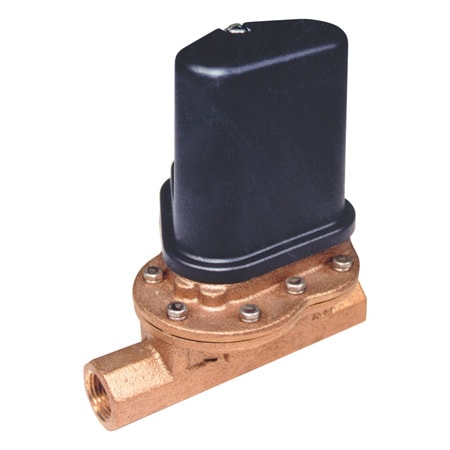

Industrial Flow Switches From 0.12 to 70 GPM Non-magnetic - ideal for Rusty Water
- 가격
- 852,250 원
- VAT 10%
- 85,225 원
- 총 금액
- 937,475 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 7 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Electrical Connection:Cable Gland for 1/4 in Cable with Screw Terminal block
Electrical Connection Note:Electrical Cable Fitting: Water resistant for cable diameter 0.250" ±0.025"
Height:5.63 in
Materials:Brass, Stainless Steel, Plastic, Bronze
Media Compatibility:Water
Operating Pressure, Max:300 psi
Operating Temperature, Max:82 °C
Operating Temperature, Min:4 °C
Pressure Drop, Max:15 psi
Pressure Drop, Min:2 psi
Process Connection Size:1 in
Process Connection Type:NPT Female
Sensitivity:5% at upper end of flow range, 25% at lower end of flow range (% flow change required to activate switch)
Switch Rating:15 A
Switch Rating Note:15 A @ 125 or 250 Vac; 10,000,000 operations median
Switch Type:SPDT NO/NC, Selectable
Volumetric Flow Rate, Max:8 GPM
Volumetric Flow Rate, Min:4 GPM
Weight:3.5 lb
Width:4.94 in
