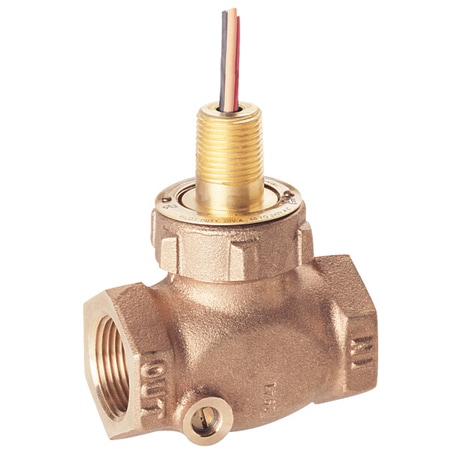

글로브 밸브 유량 스위치 ± 1% 반복성, 액체 조정 가능
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 3개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Actuation Set Point, Max | Actuation Set Point, Min | Electrical Connection | Filter | Measurement Pressure Type | Mounting Orientation | Operating Temperature, Max | Operating Temperature, Min | Port 1 Size | Port 1 Type | Port 2 Size | Port 2 Type | Pressure Limits | Pressure Limits Note | Repeatability | Repeatability Note | Sensor Material | Sensor Type | Switch Rating | Switch Type | Weight | Wire Gauge | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
GVS-112가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | 15 GPM | 5 GPM | Pigtail Leads | 150 μ or better | Gauge | Horizontal Leads wires up | 200 °F | -20 °F | 1 in | NPT Female | 1 in | NPT Female | Up to 400 psi | 400 psig (27 bar) @ 100°F (38°C) | ± 1% | ± 1% max deviation | Bronze, TFE, Stainless Steel, Fluoroelastomer, ceramic | Compatible Liquids | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.16 kg | 18 AWG | |
GVS-113가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | 8 GPM | 2 GPM | Pigtail Leads | 150 μ or better | Gauge | Horizontal Leads wires up | 200 °F | -20 °F | 1 in | NPT Female | 1 in | NPT Female | Up to 400 psi | 400 psig (27 bar) @ 100°F (38°C) | ± 1% | ± 1% max deviation | Bronze, TFE, Stainless Steel, Fluoroelastomer, ceramic | Compatible Liquids | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.16 kg | 18 AWG | |
GVS-111가격 문의14 weeks리드타임은 상황에 따라 달라질 수 있습니다. | Dwyer a DwyerOmega Brand | ± 10 % | 6 GPM | 1 GPM | Pigtail Leads | 150 μ or better | Gauge | Horizontal Leads wires up | 200 °F | -20 °F | 1 in | NPT Female | 1 in | NPT Female | Up to 400 psi | 400 psig (27 bar) @ 100°F (38°C) | ± 1% | ± 1% max deviation | Bronze, TFE, Stainless Steel, Fluoroelastomer, ceramic | Compatible Liquids | 0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc | SPDT NO/NC, Selectable | 1.16 kg | 18 AWG |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
