DwyerOmegaSeries-GVS
GVS-112

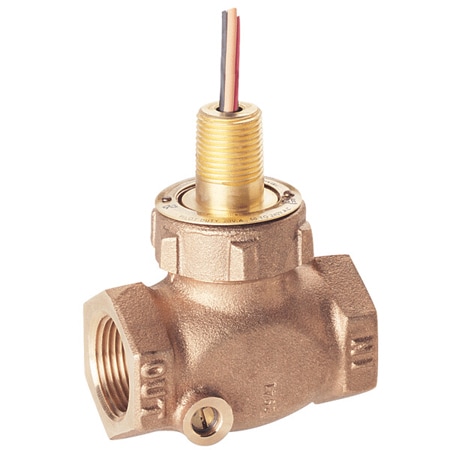

Globe valve switch, actuation set point 5.0-15.0 GPM (18.9-56.8 LPM).
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 14 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:Dwyer a DwyerOmega Brand
Accuracy:± 10 %
Actuation Set Point, Max:15 GPM
Actuation Set Point, Min:5 GPM
Electrical Connection:Pigtail Leads
Filter:150 μ or better
Measurement Pressure Type:Gauge
Mounting Orientation:Horizontal Leads wires up
Operating Temperature, Max:200 °F
Operating Temperature, Min:-20 °F
Port 1 Size:1 in
Port 1 Type:NPT Female
Port 2 Size:1 in
Port 2 Type:NPT Female
Pressure Limits:Up to 400 psi
Pressure Limits Note:400 psig (27 bar) @ 100°F (38°C)
Repeatability:± 1%
Repeatability Note:± 1% max deviation
Sensor Material:Bronze, TFE, Stainless Steel, Fluoroelastomer, ceramic
Sensor Type:Compatible Liquids
Switch Rating:0.17A@120Vac,0.08A@240Vac,0.13A@120Vdc,0.06A@240Vdc
Switch Type:SPDT NO/NC, Selectable
Weight:1.16 kg
Wire Gauge:18 AWG
