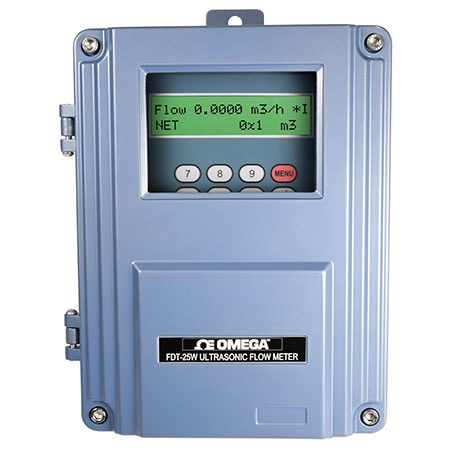

FDT-25W-Flow-Meter | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Cable Length	Data Interface	Display Language	Display Note	Display Type	Electrical Output	Enclosure Ratings	Form factor	Materials	Measurement Type	Number of Outputs	Operating Temperature, Max	Operating Temperature, Min	Pipe Size, Max	Pipe Size, Min	Process Temperature, Max	Process Temperature, Min	Relative Humidity	Repeatability	Response Time	Supply Power Type	Supply Voltage	Transducer Type	Velocity, Max	Velocity, Min	수량 / 장바구니
FDT-25W2,757,330 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	±1% of reading at rates >(0.2m/s) 0.6 ft/s	5 m	BACnet MS/TP, Modbus RTU, USB	English, Chinese	LCD with Backlight	LCD	4 to 20 mA	IP65	Wall Mount	Steel, Stainless Steel, Cast Iron, Cement, Copper, PVC, Aluminum, FRP	Transit Time	1	80 °C	-30 °C	4 in	0.75 in	90 °C	-30 °C	85% RH	0.002	0 to 999 sec	AC/DC	220 Vac / 24 Vdc	Clamp-on	32 m/s	-32 m/s

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Cable Length

Data Interface

Display Language

Display Note

Display Type

Electrical Output

Enclosure Ratings

Form factor

Materials

Measurement Type

Number of Outputs

Operating Temperature, Max

Operating Temperature, Min

Pipe Size, Max

Pipe Size, Min

Process Temperature, Max

Process Temperature, Min

Relative Humidity

Repeatability

Response Time

Supply Power Type

Supply Voltage

Transducer Type

Velocity, Max

Velocity, Min

수량 / 장바구니

FDT-25W2,757,330 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

±1% of reading at rates >(0.2m/s) 0.6 ft/s

5 m

BACnet MS/TP, Modbus RTU, USB

English, Chinese

LCD with Backlight

LCD

4 to 20 mA

IP65

Wall Mount

Steel, Stainless Steel, Cast Iron, Cement, Copper, PVC, Aluminum, FRP

Transit Time

80 °C

-30 °C

4 in

0.75 in

90 °C

-30 °C

85% RH

0.002

0 to 999 sec

AC/DC

220 Vac / 24 Vdc

Clamp-on

32 m/s

-32 m/s
