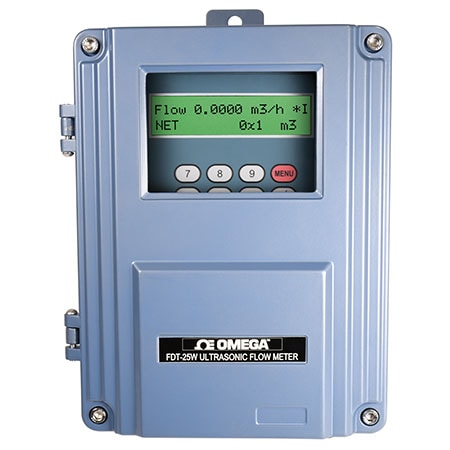

DwyerOmegaFDT-25W-Flow-Meter
FDT-25W
- 가격
- 2,757,330 원
- VAT 10%
- 275,733 원
- 총 금액
- 3,033,063 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:±1% of reading at rates >(0.2m/s) 0.6 ft/s
Cable Length:5 m
Data Interface:BACnet MS/TP, Modbus RTU, USB
Display Language:English, Chinese
Display Note:LCD with Backlight
Display Type:LCD
Electrical Output:4 to 20 mA
Enclosure Ratings:IP65
Form factor:Wall Mount
Materials:Steel, Stainless Steel, Cast Iron, Cement, Copper, PVC, Aluminum, FRP
Measurement Type:Transit Time
Number of Outputs:1
Operating Temperature, Max:80 °C
Operating Temperature, Min:-30 °C
Pipe Size, Max:4 in
Pipe Size, Min:0.75 in
Process Temperature, Max:90 °C
Process Temperature, Min:-30 °C
Relative Humidity:85% RH
Repeatability:0.002
Response Time:0 to 999 sec
Supply Power Type:AC/DC
Supply Voltage:220 Vac / 24 Vdc
Transducer Type:Clamp-on
Velocity, Max:32 m/s
Velocity, Min:-32 m/s
