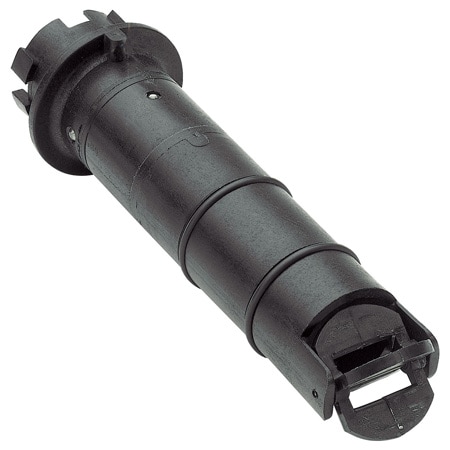

FP5600-8500A-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Approvals	Cable Length	Cable Length Note	Cable Type	Electrical Output	K-Factor	Linearity Error	Material Construction Option	Materials, Wetted	Measurement Pressure Type	Media Compatibility	Mounting Orientation	Operating Pressure Note	Operating Pressure, Max	Operating Pressure, Min	Pipe Size, Max	Pipe Size, Min	Pressure Drop Note	Process Temperature, Max	Process Temperature, Min	Repeatability Error	Supply Current	Supply Power Note	Supply Voltage	Velocity, Max	Velocity, Min	Weight	수량 / 장바구니
FP8501A673,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	CE	25 ft	7.6 m (25') [300 m (1000') maximum]	Twisted Pair with Foil Shield with Drain	Open Collector, Sinking	15 Hz/fps	±1%	Polypropylene housing, Titanium shaft	FKM, Polypropylene, Titanium	Gauge	Liquids	Mounting Kit	PP sensor housing: 180 psi @ 20°C (68°F), 25 psi @ 85°C (185°F)	180 psi	0 psi	4 in	0.5 in	Very Low Pressure Drop	85 °C	0 °C	±0.5%	1.5 mA max	3.3 to 24 Vdc <1.5 mA @ 3.3V to 6 Vdc, <20 mA @ 6V to 24 Vdc	3.3 to 24 Vdc	20 ft/s	0.3 ft/s	0 kg

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Approvals

Cable Length

Cable Length Note

Cable Type

Electrical Output

K-Factor

Linearity Error

Material Construction Option

Materials, Wetted

Measurement Pressure Type

Media Compatibility

Mounting Orientation

Operating Pressure Note

Operating Pressure, Max

Operating Pressure, Min

Pipe Size, Max

Pipe Size, Min

Pressure Drop Note

Process Temperature, Max

Process Temperature, Min

Repeatability Error

Supply Current

Supply Power Note

Supply Voltage

Velocity, Max

Velocity, Min

Weight

수량 / 장바구니

FP8501A673,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

25 ft

7.6 m (25') [300 m (1000') maximum]

Twisted Pair with Foil Shield with Drain

Open Collector, Sinking

15 Hz/fps

±1%

Polypropylene housing, Titanium shaft

FKM, Polypropylene, Titanium

Gauge

Liquids

Mounting Kit

PP sensor housing: 180 psi @ 20°C (68°F), 25 psi @ 85°C (185°F)

180 psi

0 psi

4 in

0.5 in

Very Low Pressure Drop

85 °C

0 °C

±0.5%

1.5 mA max

3.3 to 24 Vdc <1.5 mA @ 3.3V to 6 Vdc, <20 mA @ 6V to 24 Vdc

3.3 to 24 Vdc

20 ft/s

0.3 ft/s

0 kg
