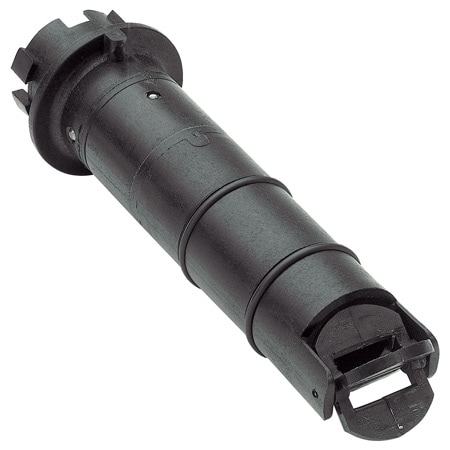

DwyerOmegaFP5600-8500A-Series
FP8501A
Low Flow Sensors
- 가격
- 673,240 원
- VAT 10%
- 67,324 원
- 총 금액
- 740,564 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Approvals:CE
Cable Length:25 ft
Cable Length Note:7.6 m (25') [300 m (1000') maximum]
Cable Type:Twisted Pair with Foil Shield with Drain
Electrical Output:Open Collector, Sinking
K-Factor:15 Hz/fps
Linearity Error:±1%
Material Construction Option:Polypropylene housing, Titanium shaft
Materials, Wetted:FKM, Polypropylene, Titanium
Measurement Pressure Type:Gauge
Media Compatibility:Liquids
Mounting Orientation:Mounting Kit
Operating Pressure Note:PP sensor housing: 180 psi @ 20°C (68°F), 25 psi @ 85°C (185°F)
Operating Pressure, Max:180 psi
Operating Pressure, Min:0 psi
Pipe Size, Max:4 in
Pipe Size, Min:0.5 in
Pressure Drop Note:Very Low Pressure Drop
Process Temperature, Max:85 °C
Process Temperature, Min:0 °C
Repeatability Error:±0.5%
Supply Current:1.5 mA max
Supply Power Note:3.3 to 24 Vdc <1.5 mA @ 3.3V to 6 Vdc, <20 mA @ 6V to 24 Vdc
Supply Voltage:3.3 to 24 Vdc
Velocity, Max:20 ft/s
Velocity, Min:0.3 ft/s
Weight:0 kg
