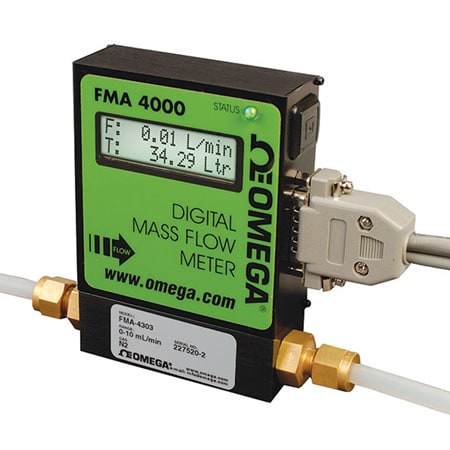

FMA4000-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 36개의 상품 · 1 - 20 표시

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Altitude Sensitivity	Calibration	Compliance	Data Interface	Display Type	Electrical Output	Enclosure Ratings	Humidity Range	Leak Rate Under Vacuum	Materials, Wetted	Media Compatibility	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Power Consumption	Pressure Coefficient	Pressure Drop, Max	Process Connection Size	Process Connection Type	Repeatability	Response Time	Response Time Note	Supply Power Note	Supply Voltage	Switch Rating	Switch Type	Temperature Coefficient	Turndown Ratio	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min
FMA-43192,756,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	3/8 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	100 SLM	0.1 SCCM, 2 SLM
FMA-43182,821,310 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	3/8 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	80 SLM	0.1 SCCM, 1.6 SLM
FMA-43172,821,310 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	3/8 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	60 SLM	0.1 SCCM, 1.2 SLM
FMA-43162,379,820 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	50 SLM	0.1 SCCM, 1 SLM
FMA-43152,410,800 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	40 SLM	0.1 SCCM, 0.8 SLM
FMA-43142,379,820 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	30 SLM	0.1 SCCM, 0.6 SLM
FMA-43121,974,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	10 SLM	0.1 SCCM, 0.2 SLM
FMA-43132,409,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	20 SLM	0.1 SCCM, 0.4 SLM
FMA-43112,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	5 SLM	0.1 SCCM, 0.1 SLM
FMA-43102,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	2 SLM	0.1 SCCM, 0.04 SLM
FMA-43092,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	1 SLM	0.1 SCCM, 0.02 SLM
FMA-43072,018,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	200 SCCM	4 SCCM
FMA-43082,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	500 SCCM	10 SCCM
FMA-43061,974,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	100 SCCM	2 SCCM
FMA-43051,964,470 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	50 SCCM	1 SCCM
FMA-43042,018,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	20 SCCM	0.4 SCCM
FMA-43032,000,790 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	10 SCCM	0.2 SCCM
FMA-43022,273,060 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	LCD	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	0.18 psi	1/4 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	5 SCCM	0.1 SCCM
FMA-41192,787,880 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	None	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	3/8 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	100 SLM	0.1 SCCM, 2 SLM
FMA-41182,717,200 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 1 %	± 1% of FS at calibration temperature and pressure	Deviation of up to 1% from stated accuracy, after re-zeroing	NIST 10-Point Certificate	CE	RS232	None	4 to 20 mA, 0 to 5 Vdc	Inst. Level II/Poll. Degree II (IEC 60664)	Up to 70%	less than 10^⁻9 cc He/s	316 Stainless Steel, Aluminum, Brass, FKM	Air, Gases, Nitrogen, Oxygen	500 psi	50 °C	5 °C	Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)	Current, Voltage	2.4 W	0.01% FS/psi	4 psi	3/8 in	Compression Fitting	± 0.15%	2 sec	600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow	Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise	11 to 26 Vdc	30 Vdc, 1A	SPDT NO/NC, Selectable	0.15% FS/°C	50:1	80 SLM	0.1 SCCM, 1.6 SLM

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Altitude Sensitivity

Calibration

Compliance

Data Interface

Display Type

Electrical Output

Enclosure Ratings

Humidity Range

Leak Rate Under Vacuum

Materials, Wetted

Media Compatibility

Operating Pressure, Max

Operating Pressure, Min

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Power Consumption

Pressure Coefficient

Pressure Drop, Max

Process Connection Size

Process Connection Type

Repeatability

Response Time

Response Time Note

Supply Power Note

Supply Voltage

Switch Rating

Switch Type

Temperature Coefficient

Turndown Ratio

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

수량 / 장바구니

FMA-43192,756,780 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

3/8 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

100 SLM

0.1 SCCM, 2 SLM

FMA-43182,821,310 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

3/8 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

80 SLM

0.1 SCCM, 1.6 SLM

FMA-43172,821,310 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

3/8 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

60 SLM

0.1 SCCM, 1.2 SLM

FMA-43162,379,820 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

50 SLM

0.1 SCCM, 1 SLM

FMA-43152,410,800 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

40 SLM

0.1 SCCM, 0.8 SLM

FMA-43142,379,820 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

30 SLM

0.1 SCCM, 0.6 SLM

FMA-43121,974,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

10 SLM

0.1 SCCM, 0.2 SLM

FMA-43132,409,510 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

20 SLM

0.1 SCCM, 0.4 SLM

FMA-43112,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

5 SLM

0.1 SCCM, 0.1 SLM

FMA-43102,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

2 SLM

0.1 SCCM, 0.04 SLM

FMA-43092,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

1 SLM

0.1 SCCM, 0.02 SLM

FMA-43072,018,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

200 SCCM

4 SCCM

FMA-43082,026,050 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

500 SCCM

10 SCCM

FMA-43061,974,740 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

100 SCCM

2 SCCM

FMA-43051,964,470 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

50 SCCM

1 SCCM

FMA-43042,018,970 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

20 SCCM

0.4 SCCM

FMA-43032,000,790 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

10 SCCM

0.2 SCCM

FMA-43022,273,060 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

LCD

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

0.18 psi

1/4 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

5 SCCM

0.1 SCCM

FMA-41192,787,880 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

None

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

3/8 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

100 SLM

0.1 SCCM, 2 SLM

FMA-41182,717,200 원9 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 1 %

± 1% of FS at calibration temperature and pressure

Deviation of up to 1% from stated accuracy, after re-zeroing

NIST 10-Point Certificate

RS232

None

4 to 20 mA, 0 to 5 Vdc

Inst. Level II/Poll. Degree II (IEC 60664)

Up to 70%

less than 10^⁻9 cc He/s

316 Stainless Steel, Aluminum, Brass, FKM

Air, Gases, Nitrogen, Oxygen

500 psi

0 psi

50 °C

5 °C

Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)

Current, Voltage

2.4 W

0.01% FS/psi

4 psi

3/8 in

Compression Fitting

± 0.15%

2 sec

600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow

Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise

11 to 26 Vdc

30 Vdc, 1A

SPDT NO/NC, Selectable

0.15% FS/°C

50:1

80 SLM

0.1 SCCM, 1.6 SLM
