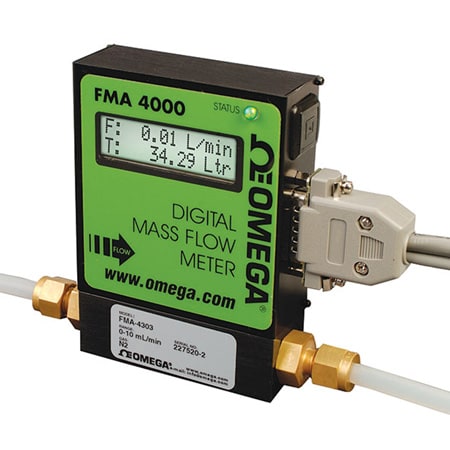

DwyerOmegaFMA4000-Series
FMA-4309
- 가격
- 2,026,050 원
- VAT 10%
- 202,605 원
- 총 금액
- 2,228,655 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 9 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:± 1% of FS at calibration temperature and pressure
Altitude Sensitivity:Deviation of up to 1% from stated accuracy, after re-zeroing
Calibration:NIST 10-Point Certificate
Compliance:CE
Data Interface:RS232
Display Type:LCD
Electrical Output:4 to 20 mA, 0 to 5 Vdc
Enclosure Ratings:Inst. Level II/Poll. Degree II (IEC 60664)
Humidity Range:Up to 70%
Leak Rate Under Vacuum:less than 10^⁻9 cc He/s
Materials, Wetted:316 Stainless Steel, Aluminum, Brass, FKM
Media Compatibility:Air, Gases, Nitrogen, Oxygen
Operating Pressure, Max:500 psi
Operating Pressure, Min:0 psi
Operating Temperature, Max:50 °C
Operating Temperature, Min:5 °C
Output Detail:Linear 0 to 5 Vdc (3000 Ω min load impedance); Linear 4 to 20 mA (500 Ω max loop resistance). Max noise 20 mV peak to peak (for 0 to 5 Vdc output)
Output Signal:Current, Voltage
Power Consumption:2.4 W
Pressure Coefficient:0.01% FS/psi
Pressure Drop, Max:0.18 psi
Process Connection Size:1/4 in
Process Connection Type:Compression Fitting
Repeatability:± 0.15%
Response Time:2 sec
Response Time Note:600 ms time constant; approximately 2 seconds to within ± 2% of set flow rate for 25 to 100% of full scale flow
Supply Power Note:Transducer Input Power: 11 to 26 Vdc, 100 mV max peak to peak output noise
Supply Voltage:11 to 26 Vdc
Switch Rating:30 Vdc, 1A
Switch Type:SPDT NO/NC, Selectable
Temperature Coefficient:0.15% FS/°C
Turndown Ratio:50:1
Volumetric Flow Rate, Max:1 SLM
Volumetric Flow Rate, Min:0.1 SCCM, 0.02 SLM
