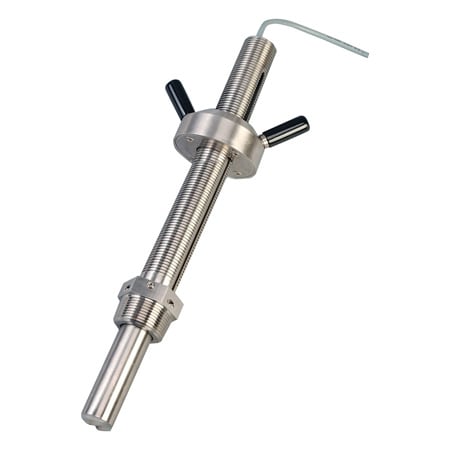

FMG550-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

Brand

OMEGA Engineering(1)

Accuracy

± 2 %(1)

Accuracy Detail

<± 2% of measured value in reference conditions where the fluid is water at ambient temperature, the appropriate upstream and downstream distances are observed, the sensor is inserted at the correct depth, and there is a fully developed flow profile which is in compliance to ISO 7145-1982 (BS 1042 section 2.2). 32 µA maximum error (at 25°C @ 24 Vdc)(1)

Approvals

Cable Length

Conductivity

Current Sink, Max

Enclosure Ratings

Installation Temperature, Max

Isolation

Linearity

Linearity Note

Loop Resistance

Materials, Wetted

Media Compatibility

Number of Outputs

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Pipe Size, Max

Pipe Size, Min

Power Supply Rejection

Process Connection Note

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Pull Up Voltage, Max

Repeatability

Repeatability Note

Short-Circuit Protected

Short-Circuit Protected Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Drift Note

Velocity, Max

Velocity, Min

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Weight

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Approvals	Cable Length	Conductivity	Current Sink, Max	Enclosure Ratings	Installation Temperature, Max	Isolation	Linearity	Linearity Note	Loop Resistance	Materials, Wetted	Media Compatibility	Number of Outputs	Operating Pressure, Max	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Pipe Size, Max	Pipe Size, Min	Power Supply Rejection	Process Connection Note	Process Connection Size	Process Connection Type	Process Temperature, Max	Process Temperature, Min	Pull Up Voltage, Max	Repeatability	Repeatability Note	Short-Circuit Protected	Short-Circuit Protected Note	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Drift Note	Velocity, Max	Velocity, Min	Volumetric Flow Rate, Max	Volumetric Flow Rate, Min	Weight	수량 / 장바구니
FMG-5534,346,730 원	OMEGA Engineering	± 2 %	<± 2% of measured value in reference conditions where the fluid is water at ambient temperature, the appropriate upstream and downstream distances are observed, the sensor is inserted at the correct depth, and there is a fully developed flow profile which is in compliance to ISO 7145-1982 (BS 1042 section 2.2). 32 µA maximum error (at 25°C @ 24 Vdc)	CE	300 m	> 20 µS/cm	50 mA	IP68, NEMA 6P	40 °C	Low voltage <48 Vac/Vdc from electrodes and auxiliary power	± 1%	± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)	300 Ω	316 Stainless Steel, FKM, PVC, PVDF, Rubber	Acid Solutions, Conductive Liquids, Saltwater	1	300 psi	70 °C	-15 °C	4 to 20 mA, programmable and reversible, loop	DC Pulse	48 in	2 in	± 1 µA/V	Standard 1 1/4" NPT Tee Adaptors, Customer Supplied	1 1/4 in	NPT Female	85 °C	-15 °C	30 Vdc	± 0.5%	± 0.5% of rdg @ 25°C (77°F)	< 30 V	<30 V @ 0 Ω pull-up for 1 hour, reverse polarity protected to -40 V for 1 hour, over-voltage protected to 40 V for 1 hour	70 °C	-15 °C	frequency (5 to 24 Vdc nominal, 5 to 26.4 Vdc maximum, 15 mA maximum), reverse polarity and short circuit protected pipe size of DN50 to DN1200 (2 to 48")	DC	5 to 24 Vdc	± 1 μA	33 ft/s	0.15 ft/s	0 GPM	0 GPM	0 lb

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Approvals

Cable Length

Conductivity

Current Sink, Max

Enclosure Ratings

Installation Temperature, Max

Isolation

Linearity

Linearity Note

Loop Resistance

Materials, Wetted

Media Compatibility

Number of Outputs

Operating Pressure, Max

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Pipe Size, Max

Pipe Size, Min

Power Supply Rejection

Process Connection Note

Process Connection Size

Process Connection Type

Process Temperature, Max

Process Temperature, Min

Pull Up Voltage, Max

Repeatability

Repeatability Note

Short-Circuit Protected

Short-Circuit Protected Note

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Drift Note

Velocity, Max

Velocity, Min

Volumetric Flow Rate, Max

Volumetric Flow Rate, Min

Weight

수량 / 장바구니

FMG-5534,346,730 원

OMEGA Engineering

± 2 %

300 m

> 20 µS/cm

50 mA

IP68, NEMA 6P

40 °C

Low voltage <48 Vac/Vdc from electrodes and auxiliary power

± 1%

± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)

300 Ω

316 Stainless Steel, FKM, PVC, PVDF, Rubber

Acid Solutions, Conductive Liquids, Saltwater

300 psi

70 °C

-15 °C

4 to 20 mA, programmable and reversible, loop

DC Pulse

48 in

2 in

± 1 µA/V

Standard 1 1/4" NPT Tee Adaptors, Customer Supplied

1 1/4 in

NPT Female

85 °C

-15 °C

30 Vdc

± 0.5%

± 0.5% of rdg @ 25°C (77°F)

< 30 V

<30 V @ 0 Ω pull-up for 1 hour, reverse polarity protected to -40 V for 1 hour, over-voltage protected to 40 V for 1 hour

70 °C

-15 °C

frequency (5 to 24 Vdc nominal, 5 to 26.4 Vdc maximum, 15 mA maximum), reverse polarity and short circuit protected pipe size of DN50 to DN1200 (2 to 48")

5 to 24 Vdc

± 1 μA

33 ft/s

0.15 ft/s

0 GPM

0 lb
