DwyerOmegaFMG550-Series

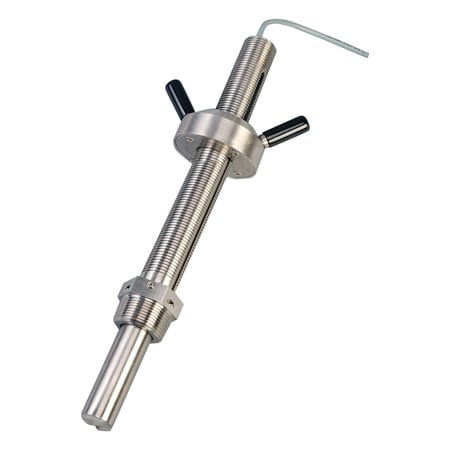

FMG-553

Insertion Metal Magmeter

가격: 4,346,730 원

VAT 10%: 434,673 원

총 금액: 4,781,403 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 문의리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 2 %

Accuracy Detail:<± 2% of measured value in reference conditions where the fluid is water at ambient temperature, the appropriate upstream and downstream distances are observed, the sensor is inserted at the correct depth, and there is a fully developed flow profile which is in compliance to ISO 7145-1982 (BS 1042 section 2.2). 32 µA maximum error (at 25°C @ 24 Vdc)

Approvals:CE

Cable Length:300 m

Conductivity:> 20 µS/cm

Current Sink, Max:50 mA

Enclosure Ratings:IP68, NEMA 6P

Installation Temperature, Max:40 °C

Isolation:Low voltage <48 Vac/Vdc from electrodes and auxiliary power

Linearity:± 1%

Linearity Note:± 1% reading + 0.01 m/s (± 1% reading + 0.033 ft/s)

Loop Resistance:300 Ω

Materials, Wetted:316 Stainless Steel, FKM, PVC, PVDF, Rubber

Media Compatibility:Acid Solutions, Conductive Liquids, Saltwater

Number of Outputs:1

Operating Pressure, Max:300 psi

Operating Temperature, Max:70 °C

Operating Temperature, Min:-15 °C

Output Detail:4 to 20 mA, programmable and reversible, loop

Output Signal:DC Pulse

Pipe Size, Max:48 in

Pipe Size, Min:2 in

Power Supply Rejection:± 1 µA/V

Process Connection Note:Standard 1 1/4" NPT Tee Adaptors, Customer Supplied

Process Connection Size:1 1/4 in

Process Connection Type:NPT Female

Process Temperature, Max:85 °C

Process Temperature, Min:-15 °C

Pull Up Voltage, Max:30 Vdc

Repeatability:± 0.5%

Repeatability Note:± 0.5% of rdg @ 25°C (77°F)

Short-Circuit Protected:< 30 V

Short-Circuit Protected Note:<30 V @ 0 Ω pull-up for 1 hour, reverse polarity protected to -40 V for 1 hour, over-voltage protected to 40 V for 1 hour

Storage Temperature, Max:70 °C

Storage Temperature, Min:-15 °C

Supply Power Note:frequency (5 to 24 Vdc nominal, 5 to 26.4 Vdc maximum, 15 mA maximum), reverse polarity and short circuit protected pipe size of DN50 to DN1200 (2 to 48")

Supply Power Type:DC

Supply Voltage:5 to 24 Vdc

Temperature Drift Note:± 1 μA

Velocity, Max:33 ft/s

Velocity, Min:0.15 ft/s

Volumetric Flow Rate, Max:0 GPM

Volumetric Flow Rate, Min:0 GPM

Weight:0 lb
