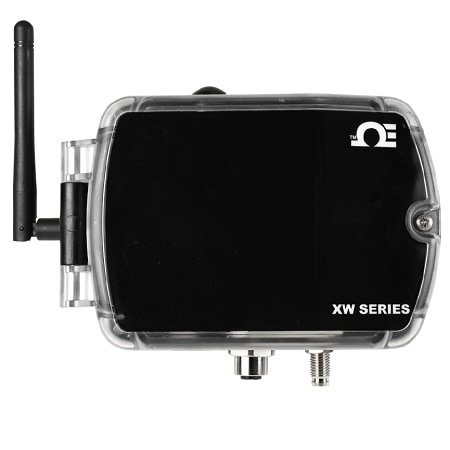

XW-ED 오메가 링크 스마트 프로브 & 카운터/디지털 무선 송신기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Battery Operating Temperature | Battery life | Compatibility | Data Interface | Electrical Connection | Electrical Output | Enclosure Ratings | Form factor | Height | Input Range | Input Range Note | Input Type | Length | Materials | Number of Channels | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Relative Humidity | Sensor Type | Software | Supply Power Note | Supply Power Type | Supply Voltage | Use With Sensor Type | Width | Wireless Receiver Sensitivity | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
XW-ED-PRO526,730 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 %, ± 1 count max, ± 50µs , ± 0.1 mA, ± 5.0 mV | Digital: Frequency: 0.01Hz to 100 Hz: ±0.5% Frequency: 100Hz to 1000Hz: ±1 Hz averaged over 1s Counter: 0 to +8388608: ±1 count max Up/Down Counter: -8388608 to +8388608: ±1 count max Pulse Width (Tpw): 0.2ms min: ±50uS ±1% Pulse Delay (Tpp): 0.2ms min: ±50uS ±1% Duty Cycle: 1% to 99%: ±50uS ƒ Process: Current: 0 to 24 mA: ±0.1 mA Voltage: 0 to 1V: ±5.0 mV | ECCN, EAR99, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU | -20 to 60 °C | up to 5 yr | Thermocouple, RTD, and Process | Wireless, USB | M12 4 pin Male | N/A | IP65, NEMA 4 | Field Mountable | 5.35 in | 0.01 to 100 Hz | Frequency: 0.01Hz to 100Hz, Current: 0-24mA, Voltage: 0-1Vdc | Discrete I/O | 1.56 in | Polycarbonate | 16 | CR2032 Battery: -20 to 60°C, Alkaline Battery: -18 to 55°C | 70 °C | -20 °C | 90% RH non-condensing | Universal | Compatible with SYNC by Omega and OEG | Power: 0.8 W maximum, Battery: Two C-cell 1.5Vdc Alkaline Battery (included), Optional AC Power Adaptor (UNIV-AC-100/240-5-M8): Nominal Output: 5 Vdc @ 0.6 A, Input: 100 to 240 Vdc, 50/60 Hz | AC/DC/Battery | 5 to 36 Vdc, 24 Vac | Digital | 3.23 in | -96 dBm | |
XW-ED501,150 원58 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 %, ± 1 count max, ± 50µs , ± 0.1 mA, ± 5.0 mV | Digital: Frequency: 0.01Hz to 100 Hz: ±0.5% Frequency: 100Hz to 1000Hz: ±1 Hz averaged over 1s Counter: 0 to +8388608: ±1 count max Up/Down Counter: -8388608 to +8388608: ±1 count max Pulse Width (Tpw): 0.2ms min: ±50uS ±1% Pulse Delay (Tpp): 0.2ms min: ±50uS ±1% Duty Cycle: 1% to 99%: ±50uS ƒ Process: Current: 0 to 24 mA: ±0.1 mA Voltage: 0 to 1V: ±5.0 mV | ECCN, EAR99, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU | -20 to 60 °C | up to 5 yr | Thermocouple, RTD, and Process | Wireless, USB | M12 4 pin Male | N/A | IP65, NEMA 4 | Field Mountable | 5.35 in | 0.01 to 100 Hz | Frequency: 0.01Hz to 100Hz, Current: 0-24mA, Voltage: 0-1Vdc | N/A | 1.56 in | Polycarbonate | 16 | CR2032 Battery: -20 to 60°C, Alkaline Battery: -18 to 55°C | 70 °C | -20 °C | 90% RH non-condensing | Universal | Compatible with SYNC by Omega and OEG | Power: 0.8 W maximum, Battery: Two C-cell 1.5Vdc Alkaline Battery (included), Optional AC Power Adaptor (UNIV-AC-100/240-5-M8): Nominal Output: 5 Vdc @ 0.6 A, Input: 100 to 240 Vdc, 50/60 Hz | AC/DC/Battery | 5 to 36 Vdc, 24 Vac | Digital | 3.23 in | -96 dBm |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
