DwyerOmegaXW-ED-Series
XW-ED

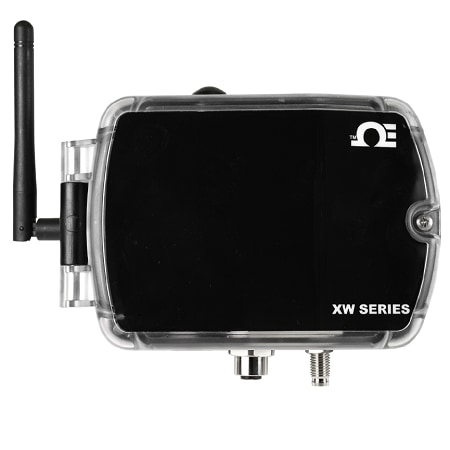

Smart Wireless Transmitter for Digital Probes
- 가격
- 501,150 원
- VAT 10%
- 50,115 원
- 총 금액
- 551,265 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %, ± 1 count max, ± 50µs , ± 0.1 mA, ± 5.0 mV
Accuracy Detail:Digital: Frequency: 0.01Hz to 100 Hz: ±0.5% Frequency: 100Hz to 1000Hz: ±1 Hz averaged over 1s Counter: 0 to +8388608: ±1 count max Up/Down Counter: -8388608 to +8388608: ±1 count max Pulse Width (Tpw): 0.2ms min: ±50uS ±1% Pulse Delay (Tpp): 0.2ms min: ±50uS ±1% Duty Cycle: 1% to 99%: ±50uS ƒ Process: Current: 0 to 24 mA: ±0.1 mA Voltage: 0 to 1V: ±5.0 mV
Approvals:ECCN, EAR99, EMC 2014/30/EU, LVD 2014/35/EU, RED 2014/53/EU
Battery Operating Temperature:-20 to 60 °C
Battery life:up to 5 yr
Compatibility:Thermocouple, RTD, and Process
Data Interface:Wireless, USB
Electrical Connection:M12 4 pin Male
Electrical Output:N/A
Enclosure Ratings:IP65, NEMA 4
Form factor:Field Mountable
Height:5.35 in
Input Range:0.01 to 100 Hz
Input Range Note:Frequency: 0.01Hz to 100Hz, Current: 0-24mA, Voltage: 0-1Vdc
Input Type:N/A
Length:1.56 in
Materials:Polycarbonate
Number of Channels:16
Operating Temperature Note:CR2032 Battery: -20 to 60°C, Alkaline Battery: -18 to 55°C
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Relative Humidity:90% RH non-condensing
Sensor Type:Universal
Software:Compatible with SYNC by Omega and OEG
Supply Power Note:Power: 0.8 W maximum, Battery: Two C-cell 1.5Vdc Alkaline Battery (included), Optional AC Power Adaptor (UNIV-AC-100/240-5-M8): Nominal Output: 5 Vdc @ 0.6 A, Input: 100 to 240 Vdc, 50/60 Hz
Supply Power Type:AC/DC/Battery
Supply Voltage:5 to 36 Vdc, 24 Vac
Use With Sensor Type:Digital
Width:3.23 in
Wireless Receiver Sensitivity:-96 dBm
