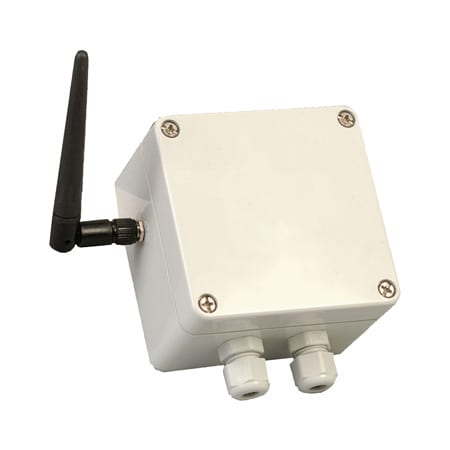

UWTC-2A-NEMA-Series | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Data Interface	Data Interface Note	Display Type	Electrical Connection	Enclosure Material	Enclosure Ratings	Form factor	Height	Input Range	Input Range Note	Input Type	Length	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Probe Diameter	Probe Length	Process Temperature, Max	Process Temperature, Min	Sensor Type	Sheath Material	Software	Supply Power Note	Supply Power Type	Temperature Probe Style	Weight	Width	Wire Length	Accuracy	Accuracy Detail	Resolution	수량 / 장바구니
UWTC-2A-NEMA가격 문의58 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Wireless, USB	USB (one interface cable included with receiver)	N/A	Screw Terminal	Polycarbonate	IP65, NEMA Type 4X	Wall Mount	5.74 in	-100 to 1260 °C	J: -100 to 760°C K: -100 to 1260°C T: -200 to 400°C E: -200 to 1000°C R: 260 to 1760°C S: 260 to 1760°C B: 870 to 1820°C C: 0 to 2315°C N: -100 to 1260°C	Thermocouple Types: J, K, T, E, R, S, B, C, N	2 in	1	70 °C	-10 °C	0 in	0 in	1260 °C	-100 °C	Temperature	N/A	Windows 2000, XP, Vista, Windows 7 operating system	3.6V lithium battery (included); user replaceable	Battery	N/A	0.58 lb	3.73 in	0 ft	± 0.5 %	Thermocouple: Types J and K: ±0.5% rdg or ±1.0°C (1.8°F), whichever is greater Types T, E, and N: ±0.5% rdg or ±2.0°C (3.6°F), whichever is greater Types R, S, B and C: ±0.5% FS	Thermocouple: 1°C
UWTC-2-NEMA가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Wireless, USB	USB (one interface cable included with receiver)	N/A	Cable Gland with Screw Terminal block	N/A	IP65, NEMA Type 4X	Wall Mount	5.74 in	-100 to 1260 °C	J: -100 to 760°C K: -100 to 1260°C T: -200 to 400°C E: -200 to 1000°C R: 260 to 1760°C S: 260 to 1760°C B: 870 to 1820°C C: 0 to 2315°C N: -100 to 1260°C	Thermocouple Types: J, K, T, E, R, S, B, C, N	2 in	1	70 °C	-10 °C	0 in	0 in	1260 °C	-100 °C	Temperature	N/A	Windows 2000, XP, Vista, Windows 7 operating system	3.6V lithium battery (included); user replaceable	Battery	N/A	0.58 lb	3.73 in	0 ft	-	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Data Interface

Data Interface Note

Display Type

Electrical Connection

Enclosure Material

Enclosure Ratings

Form factor

Height

Input Range

Input Range Note

Input Type

Length

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Probe Diameter

Probe Length

Process Temperature, Max

Process Temperature, Min

Sensor Type

Sheath Material

Software

Supply Power Note

Supply Power Type

Temperature Probe Style

Weight

Width

Wire Length

Accuracy

Accuracy Detail

Resolution

수량 / 장바구니

UWTC-2A-NEMA가격 문의58 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Wireless, USB

USB (one interface cable included with receiver)

N/A

Screw Terminal

Polycarbonate

IP65, NEMA Type 4X

Wall Mount

5.74 in

-100 to 1260 °C

J: -100 to 760°C K: -100 to 1260°C T: -200 to 400°C E: -200 to 1000°C R: 260 to 1760°C S: 260 to 1760°C B: 870 to 1820°C C: 0 to 2315°C N: -100 to 1260°C

Thermocouple Types: J, K, T, E, R, S, B, C, N

2 in

70 °C

-10 °C

0 in

1260 °C

-100 °C

Temperature

N/A

Windows 2000, XP, Vista, Windows 7 operating system

3.6V lithium battery (included); user replaceable

Battery

N/A

0.58 lb

3.73 in

0 ft

± 0.5 %

Thermocouple: Types J and K: ±0.5% rdg or ±1.0°C (1.8°F), whichever is greater Types T, E, and N: ±0.5% rdg or ±2.0°C (3.6°F), whichever is greater Types R, S, B and C: ±0.5% FS

Thermocouple: 1°C

UWTC-2-NEMA가격 문의60 weeks리드타임은 상황에 따라 달라질 수 있습니다.
