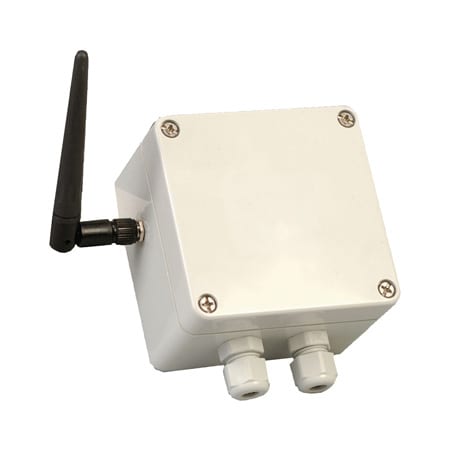

DwyerOmegaUWTC-2A-NEMA-Series
UWTC-2A-NEMA
Weather Resistant Temperature-to-Wireless Transmitters For Thermocouples
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 58 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Accuracy Detail:Thermocouple: Types J and K: ±0.5% rdg or ±1.0°C (1.8°F), whichever is greater Types T, E, and N: ±0.5% rdg or ±2.0°C (3.6°F), whichever is greater Types R, S, B and C: ±0.5% FS
Data Interface:Wireless, USB
Data Interface Note:USB (one interface cable included with receiver)
Display Type:N/A
Electrical Connection:Screw Terminal
Enclosure Material:Polycarbonate
Enclosure Ratings:IP65, NEMA Type 4X
Form factor:Wall Mount
Height:5.74 in
Input Range:-100 to 1260 °C
Input Range Note:J: -100 to 760°C K: -100 to 1260°C T: -200 to 400°C E: -200 to 1000°C R: 260 to 1760°C S: 260 to 1760°C B: 870 to 1820°C C: 0 to 2315°C N: -100 to 1260°C
Input Type:Thermocouple Types: J, K, T, E, R, S, B, C, N
Length:2 in
Number of Channels:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-10 °C
Probe Diameter:0 in
Probe Length:0 in
Process Temperature, Max:1260 °C
Process Temperature, Min:-100 °C
Resolution:Thermocouple: 1°C
Sensor Type:Temperature
Sheath Material:N/A
Software:Windows 2000, XP, Vista, Windows 7 operating system
Supply Power Note:3.6V lithium battery (included); user replaceable
Supply Power Type:Battery
Temperature Probe Style:N/A
Weight:0.58 lb
Width:3.73 in
Wire Length:0 ft
