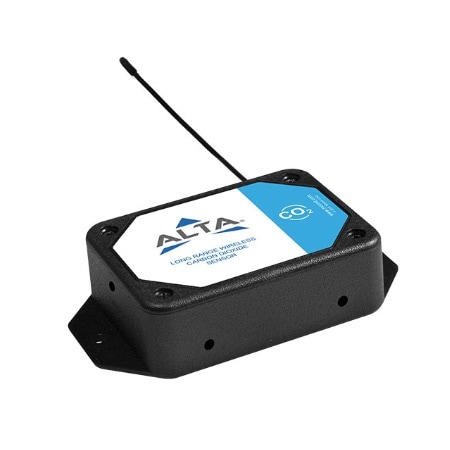

Alta-Gas | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Approvals	Approvals Note	Data Interface	Display Type	Electrical Connection	Enclosure Material	Form factor	Height	Input Range	Input Type	Length	Media Compatibility	Number of Channels	Operating Temperature Note	Operating Temperature, Max	Operating Temperature, Min	Power Consumption	Power Consumption Note	Probe Diameter	Probe Length	Relative Humidity	Resolution	Response Time	Sensor Note	Sensor Type	Sheath Material	Span Temperature Drift	Stabilization Time	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Probe Style	Thermal Effect Zero Shift	Weight	Width	Wire Length	Wireless Range	Zero Temperature Drift	Accuracy	Accuracy Detail	Calibration	Memory	Non-Linearity	수량 / 장바구니
MNS2-9-W2-GS-C2가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, FCC	FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1	Wireless	N/A	N/A	N/A	Wall Mount	2.47 in	0 to 10000 ppm	N/A	1.111 in	Air, Gases, Nitrogen, Oxygen	1	-	50 °C	0 °C	22.6 mA	Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA	0 in	0 in	0% to 95% (non-condensing)	-	3 min	Sample Method: Diffusion	Non-dispersive infrared (NDIR) absorption, Gold-plated optics, Solid-state source and detector	N/A	-	-	DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation	DC/Battery	2.0 to 3.8 Vdc	N/A	-	4 oz	4.375 in	0 ft	1200 ft	-	± 45 ppm, ± 3 %	Gas: +/-( (45 ppm + 3%) * (1 + .0013 * ΔP)) **	Autocalibration	Upto 3200 sensor messages	< ± 1%
MNS2-9-W2-GS-C1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE, FCC	FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1	Wireless	N/A	N/A	N/A	Wall Mount	2.47 in	0 to 1000 ppm	N/A	1.111 in	Air, Gases, Nitrogen, Oxygen	1	-30°C to 55°C (-20°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium	55 °C	-30 °C	35 mA	Sleep Mode:0.7 µA, Radio idle/off Mode: 2 mA, Measurement Mode: 2 mA, Radio RX Mode: 25 mA, Radio TX Mode: 35 mA	0 in	0 in	15 to 95% RH	Gas: ± 1 PPM	< 40 sec	Measuring Principle: Electrochemical Oxidation of CO	Carbon Monoxide Gas (CO)	N/A	Output Signal ≤ ± 2% of reading per month	< 120 sec	DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation	DC/Battery	2.0 to 3.8 Vdc	N/A	< 8 ppm equivalent (-20°C to +40°C)	4 oz	4.375 in	0 ft	1200 ft	Zero Signal ≤ ± 2 PPM / month	-	-	-	-	-

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals

Approvals Note

Data Interface

Display Type

Electrical Connection

Enclosure Material

Form factor

Height

Input Range

Input Type

Length

Media Compatibility

Number of Channels

Operating Temperature Note

Operating Temperature, Max

Operating Temperature, Min

Power Consumption

Power Consumption Note

Probe Diameter

Probe Length

Relative Humidity

Resolution

Response Time

Sensor Note

Sensor Type

Sheath Material

Span Temperature Drift

Stabilization Time

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Probe Style

Thermal Effect Zero Shift

Weight

Width

Wire Length

Wireless Range

Zero Temperature Drift

Accuracy

Accuracy Detail

Calibration

Memory

Non-Linearity

수량 / 장바구니

MNS2-9-W2-GS-C2가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, FCC

FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1

Wireless

N/A

Wall Mount

2.47 in

0 to 10000 ppm

N/A

1.111 in

Air, Gases, Nitrogen, Oxygen

50 °C

0 °C

22.6 mA

Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA

0 in

0% to 95% (non-condensing)

3 min

Sample Method: Diffusion

Non-dispersive infrared (NDIR) absorption, Gold-plated optics, Solid-state source and detector

N/A

DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation

DC/Battery

2.0 to 3.8 Vdc

N/A

4 oz

4.375 in

0 ft

1200 ft

± 45 ppm, ± 3 %

Gas: +/-( (45 ppm + 3%) * (1 + .0013 * ΔP)) **

Autocalibration

Upto 3200 sensor messages

< ± 1%

MNS2-9-W2-GS-C1가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

CE, FCC

FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1

Wireless

N/A

Wall Mount

2.47 in

0 to 1000 ppm

N/A

1.111 in

Air, Gases, Nitrogen, Oxygen

-30°C to 55°C (-20°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium

55 °C

-30 °C

35 mA

Sleep Mode:0.7 µA, Radio idle/off Mode: 2 mA, Measurement Mode: 2 mA, Radio RX Mode: 25 mA, Radio TX Mode: 35 mA

0 in

15 to 95% RH

Gas: ± 1 PPM

< 40 sec

Measuring Principle: Electrochemical Oxidation of CO

Carbon Monoxide Gas (CO)

N/A

Output Signal ≤ ± 2% of reading per month

< 120 sec
