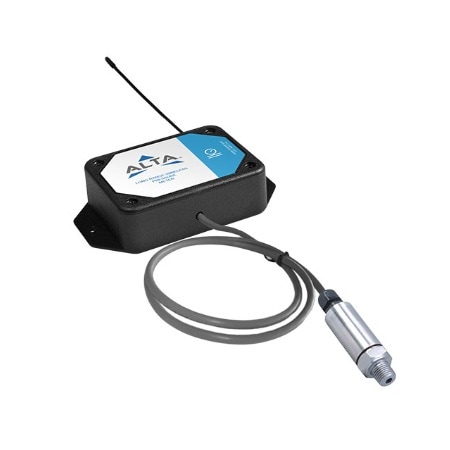

Monnit Alta 무선 50 및 300 PSIG 압력 계측기
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 4개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Accuracy Detail | Approvals | Approvals Note | Battery Operating Temperature | Battery life | Cable Length | Calibration | Calibration Accuracy | Data Interface | Electrical Connection | Enclosure Ratings | Form factor | Height | Input Range | Length | Media Compatibility | Memory | Number of Channels | Number of Sensors | Operating Temperature Note | Operating Temperature, Max | Operating Temperature, Min | Power Consumption | Power Consumption Note | Process Connection Size | Process Connection Type | Resolution | Response Time | Sensor Type | Stability | Supply Power Note | Supply Power Type | Supply Voltage | Thermal Effect | Weight | Width | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MNS2-9-W2-PS-300가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Pressure Transducer: 1.0% FS; 0.5% RSS; (Includes linearity, hysteresis, and repeatability) | CE, FCC | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1 | -40 to 85 °C | up to 12 yr | 1 m | Calibrate at greater than 20% maximum pressure of the transducer | Pressure: ± (0.5% of reading + 0.5% FS) | Wireless | Cable | - | Wall Mount | 2.47 in | 0 to 300 psi | 1.111 in | Air, Alkaline solutions, Clean Dry Air, Combustible Gases, Compatible Gases, Corrosive Gases, Dilute Acids, Gases, Hydraulic Oil, Nitrogen, Non-Conductive Gases, Oxygen, Solvents, Steam, Water | Upto 512 sensor messages | 1 | 1 | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium, Pressure Transducer 0°F to 175°F (-18°C to 79°C) | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | 1/4 in | NPT Male | Voltage: ~0.5 mV | 303 msec | Pressure | 1.0% FS/year | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply), Battery: Two replaceable 1.5 V AA sized batteries (included with purchase) | DC/Battery | 2.0 to 3.8 Vdc | ±0.02% FS/°F | 10.3 oz | 4.375 in | |
MNS2-9-W2-PS-050가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Pressure Transducer: 1.0% FS; 0.5% RSS; (Includes linearity, hysteresis, and repeatability) | CE, FCC | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1 | -40 to 85 °C | up to 12 yr | 1 m | Calibrate at greater than 20% maximum pressure of the transducer | Pressure: ± (0.5% of reading + 0.5% FS) | Wireless | Cable | - | Wall Mount | 2.47 in | 0 to 50 psi | 1.111 in | Air, Alkaline solutions, Clean Dry Air, Combustible Gases, Compatible Gases, Corrosive Gases, Dilute Acids, Gases, Hydraulic Oil, Nitrogen, Non-Conductive Gases, Oxygen, Solvents, Steam, Water | Upto 512 sensor messages | 1 | 1 | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium, Pressure Transducer 0°F to 175°F (-18°C to 79°C) | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | 1/4 in | NPT Male | Voltage: ~0.5 mV | 302 msec | Low Pressure | 1.0% FS/year | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply), Battery: Two replaceable 1.5 V AA sized batteries (included with purchase) | DC/Battery | 2.0 to 3.8 Vdc | ±0.02% FS/°F | 10.3 oz | 4.375 in | |
MNS2-9-IN-PS-050가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Pressure Transducer: 1.0% FS; 0.5% RSS; (Includes linearity, hysteresis, and repeatability) | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | 10 to 50 °C | up to 10 yr | 1 m | Calibrate at greater than 20% maximum pressure of the transducer | Pressure: ± (0.5% of reading + 0.5% FS) | Wireless | Cable | NEMA 4, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4X, Weatherproof | General Purpose | 2.316 in | 0 to 50 psi | 1.378 in | Air, Alkaline solutions, Clean Dry Air, Combustible Gases, Compatible Gases, Corrosive Gases, Dilute Acids, Gases, Hydraulic Oil, Nitrogen, Non-Conductive Gases, Oxygen, Solvents, Steam, Water | Upto 512 sensor messages | 1 | 1 | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium, Pressure Transducer 0°F to 175°F (-18°C to 79°C) | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | 1/4 in | NPT Male | Voltage: ~0.5 mV | 300 msec | Low Pressure | 1.0% FS/year | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | ±0.02% FS/°F | 13.3 oz | 3.701 in | |
MNS2-9-IN-PS-300가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1 % | Pressure Transducer: 1.0% FS; 0.5% RSS; (Includes linearity, hysteresis, and repeatability) | CE, FCC, UL | FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1, UL Listed to UL508-4x specifications (File E194432) | 10 to 50 °C | up to 10 yr | 1 m | Calibrate at greater than 20% maximum pressure of the transducer | Pressure: ± (0.5% of reading + 0.5% FS) | Wireless | Cable | NEMA 4, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4X, Weatherproof | General Purpose | 2.316 in | 0 to 300 psi | 1.378 in | Air, Alkaline solutions, Clean Dry Air, Combustible Gases, Compatible Gases, Corrosive Gases, Dilute Acids, Gases, Hydraulic Oil, Nitrogen, Non-Conductive Gases, Oxygen, Solvents, Steam, Water | Upto 512 sensor messages | 1 | 1 | -18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium, Pressure Transducer 0°F to 175°F (-18°C to 79°C) | 85 °C | -40 °C | 22.6 mA | Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA | 1/4 in | NPT Male | Voltage: ~0.5 mV | 301 msec | Pressure | 1.0% FS/year | DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC using power supply), Solar panel: 5VDC/30mA (53mm x 30mm), Charging temperature range: 0°C to 45°C (32°F to 113°F), Max temperature range: -20°C to 60°C (-4°F to 140°F), Included rechargeable battery: 600 mAh/>2000 charge cycles (80% of initial capacity), Solar efficiency: Optimized for high and low-light operation | DC/Battery | 2.0 to 3.8 Vdc | ±0.02% FS/°F | 13.3 oz | 3.701 in |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
