DwyerOmegaAlta-Pressure
MNS2-9-W2-PS-050

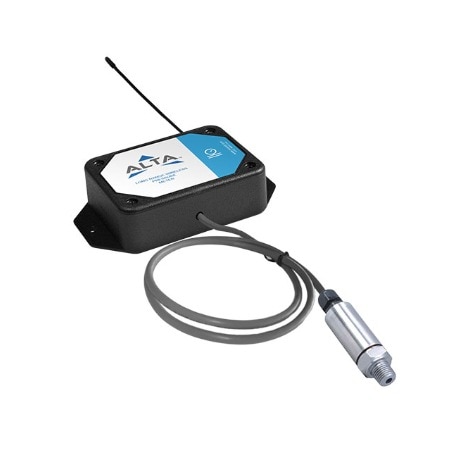

ALTA Wireless Pressure Meter - 50 PSIG - AA Battery Powered (900 MHz)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 1 %
Accuracy Detail:Pressure Transducer: 1.0% FS; 0.5% RSS; (Includes linearity, hysteresis, and repeatability)
Approvals:CE, FCC
Approvals Note:FCC ID: ZTL- G2SC1 and IC: 9794A-G2SC1
Battery Operating Temperature:-40 to 85 °C
Battery life:up to 12 yr
Cable Length:1 m
Calibration:Calibrate at greater than 20% maximum pressure of the transducer
Calibration Accuracy:Pressure: ± (0.5% of reading + 0.5% FS)
Data Interface:Wireless
Electrical Connection:Cable
Form factor:Wall Mount
Height:2.47 in
Input Range:0 to 50 psi
Length:1.111 in
Media Compatibility:Air, Alkaline solutions, Clean Dry Air, Combustible Gases, Compatible Gases, Corrosive Gases, Dilute Acids, Gases, Hydraulic Oil, Nitrogen, Non-Conductive Gases, Oxygen, Solvents, Steam, Water
Memory:Upto 512 sensor messages
Number of Channels:1
Number of Sensors:1
Operating Temperature Note:-18°C to 55°C (0°F to 130°F) using alkaline, -40°C to 85°C (-40°F to 185°F) using lithium, Pressure Transducer 0°F to 175°F (-18°C to 79°C)
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Power Consumption:22.6 mA
Power Consumption Note:Sleep Mode:0.2 µA, RTC Mode:0.7 µA, MCU Idle:570 µa, MCU Active:2.5 mA, Radio RX Mode:5.5 mA, Radio TX Mode:22.6 mA
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Resolution:Voltage: ~0.5 mV
Response Time:302 msec
Sensor Type:Low Pressure
Stability:1.0% FS/year
Supply Power Note:DC: 2.0 - 3.8 VDC (3.0 - 3.8 VDC Using Power Supply), Battery: Two replaceable 1.5 V AA sized batteries (included with purchase)
Supply Power Type:DC/Battery
Supply Voltage:2.0 to 3.8 Vdc
Thermal Effect:±0.02% FS/°F
Weight:10.3 oz
Width:4.375 in
