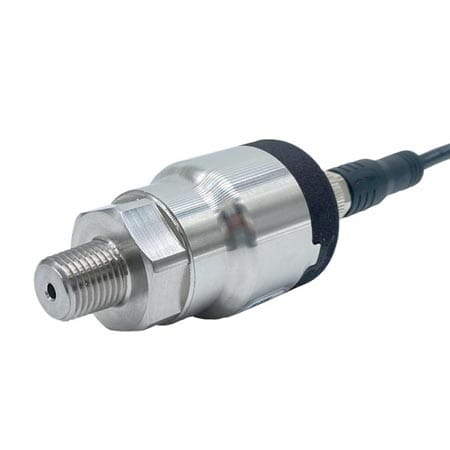

SP-006-시리즈 스마트 압력 프로브
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 5개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Approvals | Burst Pressure | Configuration | Data Interface | Digital Input | Digital Output | Enclosure Ratings | Internal Sensor Accuracy | Internal Temperature Resolution | Measurement Pressure Type | Measurement Pressure, Max | Measurement Pressure, Min | Measurement Type | Number of Channels | Number of I/O | Operating Temperature, Max | Operating Temperature, Min | Pressure Resolution | Process Connection Size | Process Connection Type | Process Temperature, Max | Process Temperature, Min | Relative Humidity | Software | Supply Power Type | Supply Voltage | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
SP-006-1-C-100G가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | CE, UKCA | 500 psi Maximum | Configurable via Omega Link Smart Interface and SYNC configuration software | USB, Modbus, Wireless | VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC | 2x Open Drain 100 mA max, VMAX = 30 VDC | IP50 | ± 1.5 °C | 0.1°C | Gauge | 100 psi | 0 psi | Pressure | 1 | 2 | 85 °C | -40 °C | 0.1 | 1/4 in | NPT Male | 80 °C | -10 °C | 95% RH, non-condensing | Compatible with Omega Enterprise Gateway and SYNC configuration software | DC | 2.8 to 3.3 Vdc | |
SP-006-1-C-250G가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | CE, UKCA | 500 psi Maximum | Configurable via Omega Link Smart Interface and SYNC configuration software | USB, Modbus, Wireless | VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC | 2x Open Drain 100 mA max, VMAX = 30 VDC | IP50 | ± 1.5 °C | 0.1°C | Gauge | 250 psi | 0 psi | Pressure | 1 | 2 | 85 °C | -40 °C | 0.1 | 1/4 in | NPT Male | 80 °C | -10 °C | 95% RH, non-condensing | Compatible with Omega Enterprise Gateway and SYNC configuration software | DC | 2.8 to 3.3 Vdc | |
SP-006-1-C-050G가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | CE, UKCA | 500 psi Maximum | Configurable via Omega Link Smart Interface and SYNC configuration software | USB, Modbus, Wireless | VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC | 2x Open Drain 100 mA max, VMAX = 30 VDC | IP50 | ± 1.5 °C | 0.1°C | Gauge | 50 psi | 0 psi | Pressure | 1 | 2 | 85 °C | -40 °C | 0.1 | 1/4 in | NPT Male | 80 °C | -10 °C | 95% RH, non-condensing | Compatible with Omega Enterprise Gateway and SYNC configuration software | DC | 2.8 to 3.3 Vdc | |
SP-006-1-C-050A가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | CE, UKCA | 500 psi Maximum | Configurable via Omega Link Smart Interface and SYNC configuration software | USB, Modbus, Wireless | VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC | 2x Open Drain 100 mA max, VMAX = 30 VDC | IP50 | ± 1.5 °C | 0.1°C | Absolute | 50 psi | 0 psi | Pressure | 1 | 2 | 85 °C | -40 °C | 0.1 | 1/4 in | NPT Male | 80 °C | -10 °C | 95% RH, non-condensing | Compatible with Omega Enterprise Gateway and SYNC configuration software | DC | 2.8 to 3.3 Vdc | |
SP-006-1-C-001G가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 0.5 % | CE, UKCA | 500 psi Maximum | Configurable via Omega Link Smart Interface and SYNC configuration software | USB, Modbus, Wireless | VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC | 2x Open Drain 100 mA max, VMAX = 30 VDC | IP50 | ± 1.5 °C | 0.1°C | Gauge | 1 psi | 0 psi | Pressure | 1 | 2 | 85 °C | -40 °C | 0.1 | 1/4 in | NPT Male | 80 °C | -10 °C | 95% RH, non-condensing | Compatible with Omega Enterprise Gateway and SYNC configuration software | DC | 2.8 to 3.3 Vdc |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
