DwyerOmegaSP-006-Series
SP-006-1-C-050A

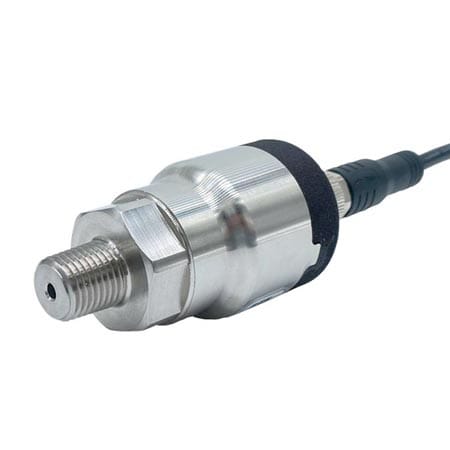

Pressure Smart Probe 50 PSI Absolute
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.5 %
Approvals:CE, UKCA
Burst Pressure:500 psi Maximum
Configuration:Configurable via Omega Link Smart Interface and SYNC configuration software
Data Interface:USB, Modbus, Wireless
Digital Input:VinHighThreshold = 2.2 VMAX, VinLowThreshold = 0.3 VMIN, VinMAX = 30 VDC
Digital Output:2x Open Drain 100 mA max, VMAX = 30 VDC
Enclosure Ratings:IP50
Internal Sensor Accuracy:± 1.5 °C
Internal Temperature Resolution:0.1°C
Measurement Pressure Type:Absolute
Measurement Pressure, Max:50 psi
Measurement Pressure, Min:0 psi
Measurement Type:Pressure
Number of Channels:1
Number of I/O:2
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Pressure Resolution:0.1
Process Connection Size:1/4 in
Process Connection Type:NPT Male
Process Temperature, Max:80 °C
Process Temperature, Min:-10 °C
Relative Humidity:95% RH, non-condensing
Software:Compatible with Omega Enterprise Gateway and SYNC configuration software
Supply Power Type:DC
Supply Voltage:2.8 to 3.3 Vdc
