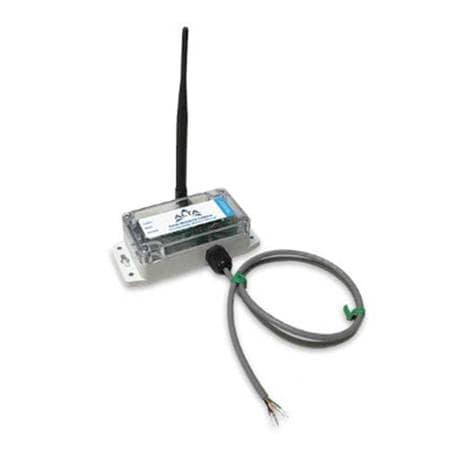

Alta-Serial-Gateways

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Approvals	Data Interface	Data Interface Note	Device Function	Display Type	Electrical Output	Enclosure Material	Enclosure Ratings	Enclosure Type	Height	LED Indicators	Length	Operating Temperature, Max	Operating Temperature, Min	Reset	Storage Temperature, Max	Storage Temperature, Min	Supply Current	Supply Power Note	Supply Power Type	Supply Voltage	Weight	Width	Wireless Band	Wireless Range Note	수량 / 장바구니
MNG2-9-SG-SMG가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	FCC ID: ZTL- RFSC1 and IC: 9794A-RFSC1	RS232, RS485	Protocol Selector: Modbus RTU / ASCII Serial, RS232C: TXD (OUT), RXD (IN), and Ground / Common, RS-485: D+, D-, and Ground / Common; Devices Supported, Max: 50	Gateway	N/A	N/A	Polycarbonate	IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X	N/A	90.678 mm	Wireless Activity, Wired Activity, System Status	179.603 mm	85 °C	-40 °C	Communication / Factory Settings Reset Jumper	85 °C	-40 °C	100 mA	Voltage Range: 4.5 - 36.0 VDC, Minimum Current Required: 100mA (500mA Recommended)	DC	4.5 to 36 Vdc	16 oz	41.3 mm	900 MHz	RFSC1 Module by Monnit Frequencies: 433, 868 and 900 MHz (Future support for WiFi and 500 mW modules); Antenna Gain: 5.0 dBi Standard; Antenna Connector: RP-SMA

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals

Data Interface

Data Interface Note

Device Function

Display Type

Electrical Output

Enclosure Material

Enclosure Ratings

Enclosure Type

Height

LED Indicators

Length

Operating Temperature, Max

Operating Temperature, Min

Reset

Storage Temperature, Max

Storage Temperature, Min

Supply Current

Supply Power Note

Supply Power Type

Supply Voltage

Weight

Width

Wireless Band

Wireless Range Note

수량 / 장바구니

MNG2-9-SG-SMG가격 문의11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

FCC ID: ZTL- RFSC1 and IC: 9794A-RFSC1

RS232, RS485

Protocol Selector: Modbus RTU / ASCII Serial, RS232C: TXD (OUT), RXD (IN), and Ground / Common, RS-485: D+, D-, and Ground / Common; Devices Supported, Max: 50

Gateway

N/A

Polycarbonate

IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X

N/A

90.678 mm

Wireless Activity, Wired Activity, System Status

179.603 mm

85 °C

-40 °C

Communication / Factory Settings Reset Jumper

85 °C

-40 °C

100 mA

Voltage Range: 4.5 - 36.0 VDC, Minimum Current Required: 100mA (500mA Recommended)

4.5 to 36 Vdc

16 oz

41.3 mm

900 MHz

RFSC1 Module by Monnit Frequencies: 433, 868 and 900 MHz (Future support for WiFi and 500 mW modules); Antenna Gain: 5.0 dBi Standard; Antenna Connector: RP-SMA
