DwyerOmegaAlta-Serial-Gateways
MNG2-9-SG-SMG

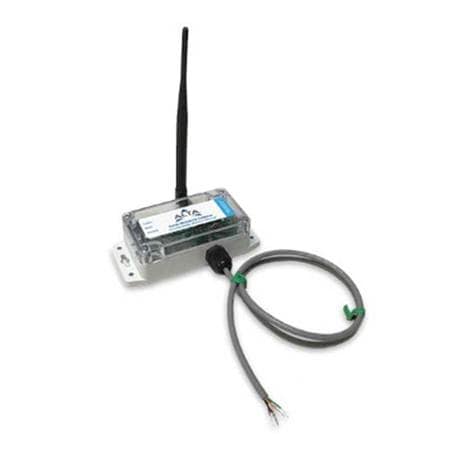

ALTA Serial MODBUS Gateway (900 MHz)
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:FCC ID: ZTL- RFSC1 and IC: 9794A-RFSC1
Data Interface:RS232, RS485
Data Interface Note:Protocol Selector: Modbus RTU / ASCII Serial, RS232C: TXD (OUT), RXD (IN), and Ground / Common, RS-485: D+, D-, and Ground / Common; Devices Supported, Max: 50
Device Function:Gateway
Display Type:N/A
Electrical Output:N/A
Enclosure Material:Polycarbonate
Enclosure Ratings:IP65, NEMA Type 1, NEMA Type 12, NEMA Type 13, NEMA Type 2, NEMA Type 4, NEMA Type 4X
Enclosure Type:N/A
Height:90.678 mm
LED Indicators:Wireless Activity, Wired Activity, System Status
Length:179.603 mm
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Reset:Communication / Factory Settings Reset Jumper
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Current:100 mA
Supply Power Note:Voltage Range: 4.5 - 36.0 VDC, Minimum Current Required: 100mA (500mA Recommended)
Supply Power Type:DC
Supply Voltage:4.5 to 36 Vdc
Weight:16 oz
Width:41.3 mm
Wireless Band:900 MHz
Wireless Range Note:RFSC1 Module by Monnit Frequencies: 433, 868 and 900 MHz (Future support for WiFi and 500 mW modules); Antenna Gain: 5.0 dBi Standard; Antenna Connector: RP-SMA
