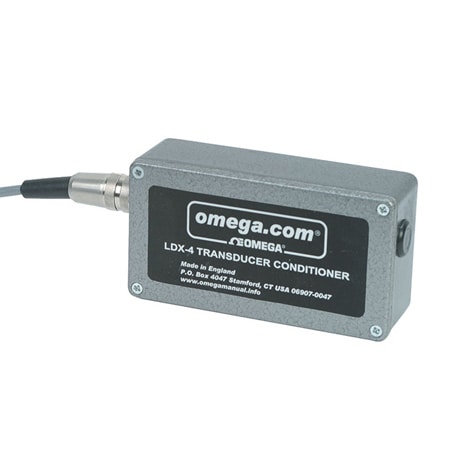

LDX-4-LVDT-Sig-Cond | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Approvals	Bandwidth	Electrical Connection	Electrical Output	Height	Input Electrical Connection	Input Noise	Input Type	Load Resistance	Non-Linearity	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Protection	Sensitivity	Sensor Excitation	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Coefficient	Weight	Width	수량 / 장바구니
LDX-41,703,550 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	CE	500 kHz	Internal Terminal Block	+5V, ±10V, 20 mA	65 mm	5-pin circular DIN	20 mV p-p @ 100 kHz	Voltage	1 kΩ	<0.1% BSL	60 °C	0 °C	Offset Range: 0 to 100%	Current, Voltage	Input Protection: Overvoltage, reverse connection	Transducer : 45 to 450 mV/V	3 Vrms @ 5 kHz	Voltage Output: 140 mA max with 10 Vdc supply voltage; 60 mA max with 30 Vdc supply voltage Current Output: 180 mA max with 10 Vdc supply voltage; 70 mA max with 30 Vdc supply voltage	DC	10 to 30 Vdc	Gain:<200 ppm/°C;Output:<200 ppm/°C	300 g	40 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals

Bandwidth

Electrical Connection

Electrical Output

Height

Input Electrical Connection

Input Noise

Input Type

Load Resistance

Non-Linearity

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Protection

Sensitivity

Sensor Excitation

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Weight

Width

수량 / 장바구니

LDX-41,703,550 원11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

500 kHz

Internal Terminal Block

+5V, ±10V, 20 mA

65 mm

5-pin circular DIN

20 mV p-p @ 100 kHz

Voltage

1 kΩ

<0.1% BSL

60 °C

0 °C

Offset Range: 0 to 100%

Current, Voltage

Input Protection: Overvoltage, reverse connection

Transducer : 45 to 450 mV/V

3 Vrms @ 5 kHz

Voltage Output: 140 mA max with 10 Vdc supply voltage; 60 mA max with 30 Vdc supply voltage Current Output: 180 mA max with 10 Vdc supply voltage; 70 mA max with 30 Vdc supply voltage

10 to 30 Vdc

Gain:<200 ppm/°C;Output:<200 ppm/°C

300 g

40 mm
