DwyerOmegaLDX-4-LVDT-Sig-Cond

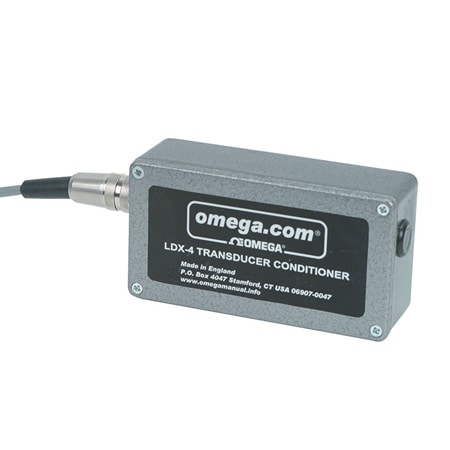

LDX-4

LVDT Signal Conditioner, DC Powered

가격: 1,703,550 원

VAT 10%: 170,355 원

총 금액: 1,873,905 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 11 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Approvals:CE

Bandwidth:500 kHz

Electrical Connection:Internal Terminal Block

Electrical Output:+5V, ±10V, 20 mA

Height:65 mm

Input Electrical Connection:5-pin circular DIN

Input Noise:20 mV p-p @ 100 kHz

Input Type:Voltage

Load Resistance:1 kΩ

Non-Linearity:<0.1% BSL

Operating Temperature, Max:60 °C

Operating Temperature, Min:0 °C

Output Detail:Offset Range: 0 to 100%

Output Signal:Current, Voltage

Protection:Input Protection: Overvoltage, reverse connection

Sensitivity:Transducer : 45 to 450 mV/V

Sensor Excitation:3 Vrms @ 5 kHz

Supply Power Note:Voltage Output: 140 mA max with 10 Vdc supply voltage; 60 mA max with 30 Vdc supply voltage Current Output: 180 mA max with 10 Vdc supply voltage; 70 mA max with 30 Vdc supply voltage

Supply Power Type:DC

Supply Voltage:10 to 30 Vdc

Temperature Coefficient:Gain:<200 ppm/°C;Output:<200 ppm/°C

Weight:300 g

Width:40 mm
