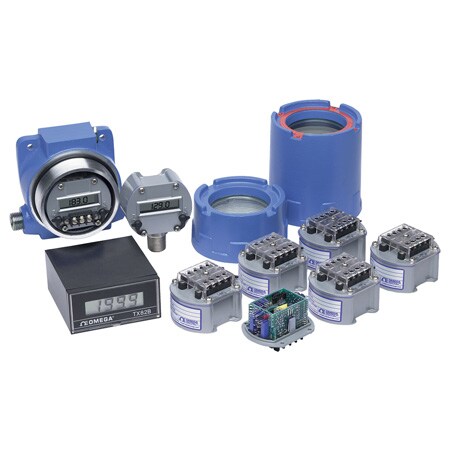

고급 응용 분야를 위한 절연형 4~20mA 트랜스미터
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 2개의 상품
| 제품 번호 / 가격 | Brand | Approvals | Compliance | Diameter | Electrical Connection | Electrical Output | Enclosure Ratings | Height | Hysteresis | Impedance Input | Input Electrical Connection | Input Range | Input Type | Isolation | Long Term Stability | Materials | Mounting | Number of Wires | Operating Temperature, Max | Operating Temperature, Min | Output Detail | Output Signal | Power Supply Rejection | Protection | Relative Humidity | Repeatability | Response Time | Shock | Span Error | Storage Temperature, Max | Storage Temperature, Min | Supply Power | Supply Power Type | Turndown Ratio | Vibration | Water tight Proof Pressure | Weight | Zero/Balance Error | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TX1502A-K가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | RoHS 2 Compliant | 9 to 50 Vdc | 74 mm | Screw Terminal | 4 to 20 mA | IP66, NEMA Type 4X | 53 mm | ± 0.1% | 5 MΩ | Screw Terminals | 100 to 1422°C | Thermocouple Type K | 1500 Vrms | ± 0.2% of zero suppression(6-month) | Zamak Zinc Alloy, Fluorosilicone | Rail Mount | 2 | 85 °C | -40 °C | Max Signal for 20 mA Output: 1372°C;Max Bias Current: 50 nA;Zero Suppression for 4 mA Output: -50 to 1272°C; Maximum Output = 35 mA | Current | 0.01% of span/V | Termination Protection: Standard: Screw terminal barriers plus barrier strip cover | 0 to 100% (sealed case) | ± 0.1% | 400 ms | 55 g, half sine, 9 to 13 ms duration | ± 0.2% of span, Due to 50°C Change in Transmitter Temperature | 125 °C | -55 °C | 9 to 50V | Loop Powered | 10:1 | 1.52 mm (0.06") double amplitude, 10 to 80 Hz cycled | 5 psi | 380 g | ± 0.2% of zero suppression, Due to 50°C Change in Transmitter Temperature | |
TX1505가격 문의103 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | RoHS 2 Compliant | 9 to 50 Vdc | 74 mm | Screw Terminal | 4 to 20 mA | IP66, NEMA Type 4X | 53 mm | ± 0.1% | 1 Ω | Screw Terminals | 5 to 100 mA | Current | 1500 Vrms | ± 0.2% of zero suppression(6-month) | Zamak Zinc Alloy, Fluorosilicone | Rail Mount | 2 | 85 °C | -40 °C | Max Signal for 20 mA Output: 160 mA; Zero Suppression for 4 mA Output: -30 to 60 mA; Maximum Output = 35 mA | Current | 0.01% of span/V | Termination Protection: Standard: Screw terminal barriers plus barrier strip cover | 0 to 100% (sealed case) | ± 0.1% | 400 ms | 55 g, half sine, 9 to 13 ms duration | ± 0.2% of span, Due to 50°C Change in Transmitter Temperature | 125 °C | -55 °C | 9 to 50V | Loop Powered | 10:1 | 1.52 mm (0.06") double amplitude, 10 to 80 Hz cycled | 5 psi | 380 g | ± 0.2% of zero suppression, Due to 50°C Change in Transmitter Temperature |
스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.
