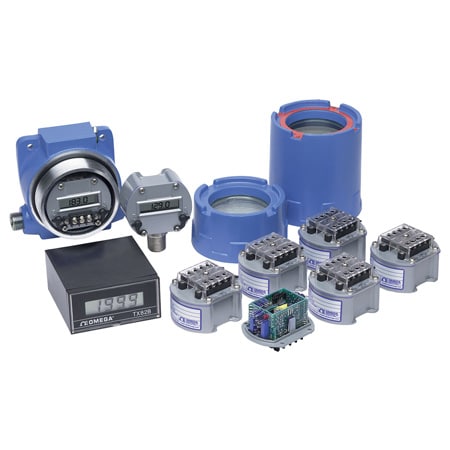

DwyerOmegaTX1500-Srs-Transmitters
TX1505
- 판매 가격
- 가격 문의
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 103 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals:RoHS 2 Compliant
Compliance:9 to 50 Vdc
Diameter:74 mm
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Enclosure Ratings:IP66, NEMA Type 4X
Height:53 mm
Hysteresis:± 0.1%
Impedance Input:1 Ω
Input Electrical Connection:Screw Terminals
Input Range:5 to 100 mA
Input Type:Current
Isolation:1500 Vrms
Long Term Stability:± 0.2% of zero suppression(6-month)
Materials:Zamak Zinc Alloy, Fluorosilicone
Mounting:Rail Mount
Number of Wires:2
Operating Temperature, Max:85 °C
Operating Temperature, Min:-40 °C
Output Detail:Max Signal for 20 mA Output: 160 mA; Zero Suppression for 4 mA Output: -30 to 60 mA; Maximum Output = 35 mA
Output Signal:Current
Power Supply Rejection:0.01% of span/V
Protection:Termination Protection: Standard: Screw terminal barriers plus barrier strip cover
Relative Humidity:0 to 100% (sealed case)
Repeatability:± 0.1%
Response Time:400 ms
Shock:55 g, half sine, 9 to 13 ms duration
Span Error:± 0.2% of span, Due to 50°C Change in Transmitter Temperature
Storage Temperature, Max:125 °C
Storage Temperature, Min:-55 °C
Supply Power:9 to 50V
Supply Power Type:Loop Powered
Turndown Ratio:10:1
Vibration:1.52 mm (0.06") double amplitude, 10 to 80 Hz cycled
Water tight Proof Pressure:5 psi
Weight:380 g
Zero/Balance Error:± 0.2% of zero suppression, Due to 50°C Change in Transmitter Temperature
