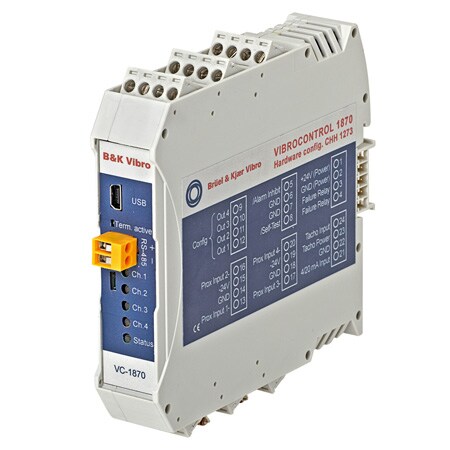

VC1870 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Alarm Type Note	Applications	Approvals	Approvals Note	Capacitance	Data Interface	Electrical Output	Enclosure Ratings	Frequency Response	Height	Input Configuration	Input Electrical Connection	Input Range	Input Resistance	Input Type	LED Indicators	Length	Modularity	Number of Channels	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Peak Detection	Recording Note	Sensitivity	Sensor Type	Storage Temperature, Min	Test Function	Weight	Width	수량 / 장바구니
VC-1870가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 3.5 %	Vibration Measurement:±3.5%, Process Measurement:±0.75%, Analogue output:±1.5%, Speed Sensors:±0.5%	alert_and_danger_per_each_detector_with_adjustable_alarm_limits alert_delay_time_0_100_sec danger_delay_time_0_100_sec reset_time_for_alert_and_danger_0___100_sec	Axial Position, Relative Shaft Vibration	CE	CE, ISO 13849-1, ISO 10816-3, VDI 3832, API 670	10 nF	USB, RS-485, Ethernet	4-20 mA, 0-20 mA	IP20	10 Hz – 1,000 Hz, -1 dB, 24 dB/oct. Selectable ranges e.g. 1-300/1,000 Hz, multiple filters settings 0.7-10,000 Hz Filter response: High pass and low pass filters;refer to the setup part for the specific parameters for the Cut-off freq., pass band attenuation, Stop band freq. and Stopband attenuation	110 mm	Full scale vibration measuring ranges up to 1-100 mm/s,1-300 m/s2 ,0.1-15 mm Pk Pk	Screw Terminals	4 to 20 mA, 0 to 20 mA	≥ 450 kΩ	Current	5 light diodes indicate channel status (green, yellow, red) for each of the 4 vibration input channels, as well as for general system status	114 mm	Link Concept modularity: VIBROCONTRL 1800 Series –all components -Vibration Monitor, EtherBridge, Relay Module, Input and Output Modules can be interconnected by means of DIN rail bus connectors	4	50 °C	-10 °C	Current	Attack time of Peak Detector: 1 to 1,000 ms;Decay time of Peak Dettector:0.1 to 100 sec	Up to 4 input channels can record digital raw data (time waveform) simultaneously to a PC running The recording can be done through: RS-485/LAN (buffered): Up to 10 kHz Mini USB (real-time): Up to 10 kHz Time waveform recording is user activated and contains scalar values for vibration and process input data at start of recording.	0.8-8 V/mm	Displacement	-40 °C	Can be activated digitally or by PC. As default the alarm relays activate and DC outputs increase to the specified test level of 102 %	160 g	23 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Alarm Type Note

Applications

Approvals

Approvals Note

Capacitance

Data Interface

Electrical Output

Enclosure Ratings

Frequency Response

Height

Input Configuration

Input Electrical Connection

Input Range

Input Resistance

Input Type

LED Indicators

Length

Modularity

Number of Channels

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Peak Detection

Recording Note

Sensitivity

Sensor Type

Storage Temperature, Min

Test Function

Weight

Width

수량 / 장바구니

VC-1870가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 3.5 %

Vibration Measurement:±3.5%, Process Measurement:±0.75%, Analogue output:±1.5%, Speed Sensors:±0.5%

alert_and_danger_per_each_detector_with_adjustable_alarm_limits alert_delay_time_0_100_sec danger_delay_time_0_100_sec reset_time_for_alert_and_danger_0___100_sec

Axial Position, Relative Shaft Vibration

CE, ISO 13849-1, ISO 10816-3, VDI 3832, API 670

10 nF

USB, RS-485, Ethernet

4-20 mA, 0-20 mA

IP20

10 Hz – 1,000 Hz, -1 dB, 24 dB/oct. Selectable ranges e.g. 1-300/1,000 Hz, multiple filters settings 0.7-10,000 Hz Filter response: High pass and low pass filters;refer to the setup part for the specific parameters for the Cut-off freq., pass band attenuation, Stop band freq. and Stopband attenuation

110 mm

Full scale vibration measuring ranges up to 1-100 mm/s,1-300 m/s2 ,0.1-15 mm Pk Pk

Screw Terminals

4 to 20 mA, 0 to 20 mA

≥ 450 kΩ

Current

5 light diodes indicate channel status (green, yellow, red) for each of the 4 vibration input channels, as well as for general system status

114 mm

Link Concept modularity: VIBROCONTRL 1800 Series –all components -Vibration Monitor, EtherBridge, Relay Module, Input and Output Modules can be interconnected by means of DIN rail bus connectors

50 °C

-10 °C

Current

Attack time of Peak Detector: 1 to 1,000 ms;Decay time of Peak Dettector:0.1 to 100 sec

Up to 4 input channels can record digital raw data (time waveform) simultaneously to a PC running The recording can be done through: RS-485/LAN (buffered): Up to 10 kHz Mini USB (real-time): Up to 10 kHz Time waveform recording is user activated and contains scalar values for vibration and process input data at start of recording.

0.8-8 V/mm

Displacement

-40 °C

Can be activated digitally or by PC. As default the alarm relays activate and DC outputs increase to the specified test level of 102 %

160 g

23 mm
