DwyerOmegaVC1870

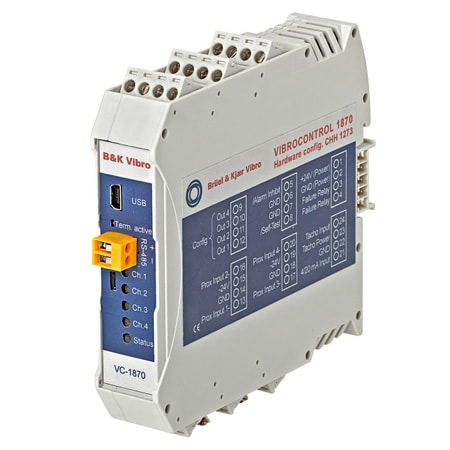

VC-1870

1- to 4-channel vibration monitoring system

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 3.5 %

Accuracy Detail:Vibration Measurement:±3.5%, Process Measurement:±0.75%, Analogue output:±1.5%, Speed Sensors:±0.5%

Alarm Type Note:alert_and_danger_per_each_detector_with_adjustable_alarm_limits alert_delay_time_0_100_sec danger_delay_time_0_100_sec reset_time_for_alert_and_danger_0___100_sec

Applications:Axial Position, Relative Shaft Vibration

Approvals:CE

Approvals Note:CE, ISO 13849-1, ISO 10816-3, VDI 3832, API 670

Capacitance:10 nF

Data Interface:USB, RS-485, Ethernet

Electrical Output:4-20 mA, 0-20 mA

Enclosure Ratings:IP20

Frequency Response:10 Hz – 1,000 Hz, -1 dB, 24 dB/oct. Selectable ranges e.g. 1-300/1,000 Hz, multiple filters settings 0.7-10,000 Hz Filter response: High pass and low pass filters;refer to the setup part for the specific parameters for the Cut-off freq., pass band attenuation, Stop band freq. and Stopband attenuation

Height:110 mm

Input Configuration:Full scale vibration measuring ranges up to 1-100 mm/s,1-300 m/s2 ,0.1-15 mm Pk Pk

Input Electrical Connection:Screw Terminals

Input Range:4 to 20 mA, 0 to 20 mA

Input Resistance:≥ 450 kΩ

Input Type:Current

LED Indicators:5 light diodes indicate channel status (green, yellow, red) for each of the 4 vibration input channels, as well as for general system status

Length:114 mm

Modularity:Link Concept modularity: VIBROCONTRL 1800 Series –all components -Vibration Monitor, EtherBridge, Relay Module, Input and Output Modules can be interconnected by means of DIN rail bus connectors

Number of Channels:4

Operating Temperature, Max:50 °C

Operating Temperature, Min:-10 °C

Output Signal:Current

Peak Detection:Attack time of Peak Detector: 1 to 1,000 ms;Decay time of Peak Dettector:0.1 to 100 sec

Recording Note:Up to 4 input channels can record digital raw data (time waveform) simultaneously to a PC running The recording can be done through: RS-485/LAN (buffered): Up to 10 kHz Mini USB (real-time): Up to 10 kHz Time waveform recording is user activated and contains scalar values for vibration and process input data at start of recording.

Sensitivity:0.8-8 V/mm

Sensor Type:Displacement

Storage Temperature, Min:-40 °C

Test Function:Can be activated digitally or by PC. As default the alarm relays activate and DC outputs increase to the specified test level of 102 %

Weight:160 g

Width:23 mm
