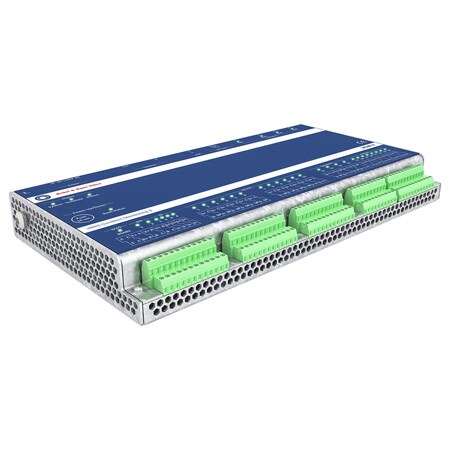

VCM-3 | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	ADC Resolution	Accuracy	Accuracy Detail	Applications	Approvals	Circuit Protection	Common Mode Rejection	Cyber Security	Data Interface	Electrical Output	Enclosure Ratings	Frequency Response	Height	Impedance Input	Input Range	Input Type	Length	Mounting	Network Connections	Network and Communications	Number of Channels	Operating Environment	Operating Temperature Note	Operating Temperature, Max	Operating Temperature, Min	Output Signal	Power Consumption	Remote Operation	Sensor Type	Storage Temperature, Max	Storage Temperature, Min	Supply Power	Supply Power Type	Weight	Width	수량 / 장바구니
VCM-3-DIN가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	24 bit	±0.5 dB	AC Amplitude: ± 0.5dB, DC Amplitude: 1% relative of full scale with ± 40mV Offset.	Bearing Conditions, Casing Vibration, Rolling Element	cULus certified (in preparation)	Fuse Protected Power supply inputs	>50 dB at 50 Hz.	Secure protocols: Communication takes place through secure and encrypted protocols, such as Web-sockets, HTTPS, SCP. Port configuration: All services using a TCP/IP port (e.g. https, default port 443) can be configured to use another port NERC Compliance: The VCM-3 can be part of solutions complying with NERC CIP Standards. (North American Electric Reliability Corporation – Critical Infrastructure Protection). Strong passwords: The use of strong passwords is enforced. Compliance with NIST SP800-118 – Guide to enterprise Password Management. Can be changed by user.	USB	4 to 20 mA	IP20	Frequency Range: 0.1 Hz to 80 kHz (ECU: 1 kHz to 80 kHz). Lower to upper filter corner frequency span must be at least 1:3 but not exceed 1:5000. Dynamic Range: >100 dB at 1 kHz, >94 dB at 0.1 kHz. Channel Interference: >-100 dB. Total Harmonic Distortion (THD): <0.01% at 250 Hz, 4 Vpp. Phase Match Between Channels: <0.3° at 80 kHz.	35 mm	>100kΩ	-25.5 to +25.5V	Differential, Bipolar	280 mm	DIN Rail Mounting	3x (RJ45), 1x optical SFP connector	Low-Level Protocols: Ethernet TCP/IP, IPv4 (prepared for IPv6). Network Switch Functionality: 4 network ports with built-in switch functionality. System Integration: OPC UA Server: Supports data export to controllers, SCADA systems, or other components with an internal update rate of 5 seconds. Modbus TCP Server: Enables data export to SCADA systems or other components with an internal update rate of 1 second. Modbus RTU: Support in preparation.	12	Vibration Resistance: Designed to withstand random and sine vibrations in accordance with EN/IEC 60068-2-6. Rough Handling: Compliant with storage standards as per EN/IEC 60068-2-31. High Altitude Operation: Capable of functioning at altitudes up to 3,500 meters, as per EN/IEC 60068-2-13. Inclination: Meets the requirements for inclination as defined in IEC 60092-504. HALT Testing: Subjected to Highly Accelerated Life Testing (HALT) under excessive vibration, extreme temperatures, and their combinations to ensure reliability.	The system is operational during temperature changes at a rate of 1°C per minute, compliant with EN/IEC 60068-2-14. It is also designed for operation under static damp heat and cyclic damp heat conditions, meeting the requirements of EN/IEC 60068-2-78, EN/IEC 60068-2-30, and EN/IEC 60068-2-38.	60 °C	-30 °C	Current	18-26 V DC/10W	Upload of firmware updates and monitoring templates via network	Acceleration	85 °C	-40 °C	10mA/+24 Vdc/ -24 Vdc	DC	1.5 kg	153.5 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

ADC Resolution

Accuracy

Accuracy Detail

Applications

Approvals

Circuit Protection

Common Mode Rejection

Cyber Security

Data Interface

Electrical Output

Enclosure Ratings

Frequency Response

Height

Impedance Input

Input Range

Input Type

Length

Mounting

Network Connections

Network and Communications

Number of Channels

Operating Environment

Operating Temperature Note

Operating Temperature, Max

Operating Temperature, Min

Output Signal

Power Consumption

Remote Operation

Sensor Type

Storage Temperature, Max

Storage Temperature, Min

Supply Power

Supply Power Type

Weight

Width

수량 / 장바구니

VCM-3-DIN가격 문의18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

24 bit

±0.5 dB

AC Amplitude: ± 0.5dB, DC Amplitude: 1% relative of full scale with ± 40mV Offset.

Bearing Conditions, Casing Vibration, Rolling Element

cULus certified (in preparation)

Fuse Protected Power supply inputs

>50 dB at 50 Hz.

Secure protocols: Communication takes place through secure and encrypted protocols, such as Web-sockets, HTTPS, SCP. Port configuration: All services using a TCP/IP port (e.g. https, default port 443) can be configured to use another port NERC Compliance: The VCM-3 can be part of solutions complying with NERC CIP Standards. (North American Electric Reliability Corporation – Critical Infrastructure Protection). Strong passwords: The use of strong passwords is enforced. Compliance with NIST SP800-118 – Guide to enterprise Password Management. Can be changed by user.

USB

4 to 20 mA

IP20

Frequency Range: 0.1 Hz to 80 kHz (ECU: 1 kHz to 80 kHz). Lower to upper filter corner frequency span must be at least 1:3 but not exceed 1:5000. Dynamic Range: >100 dB at 1 kHz, >94 dB at 0.1 kHz. Channel Interference: >-100 dB. Total Harmonic Distortion (THD): <0.01% at 250 Hz, 4 Vpp. Phase Match Between Channels: <0.3° at 80 kHz.

35 mm

>100kΩ

-25.5 to +25.5V

Differential, Bipolar

280 mm

DIN Rail Mounting

3x (RJ45), 1x optical SFP connector

Low-Level Protocols: Ethernet TCP/IP, IPv4 (prepared for IPv6). Network Switch Functionality: 4 network ports with built-in switch functionality. System Integration: OPC UA Server: Supports data export to controllers, SCADA systems, or other components with an internal update rate of 5 seconds. Modbus TCP Server: Enables data export to SCADA systems or other components with an internal update rate of 1 second. Modbus RTU: Support in preparation.

Vibration Resistance: Designed to withstand random and sine vibrations in accordance with EN/IEC 60068-2-6. Rough Handling: Compliant with storage standards as per EN/IEC 60068-2-31. High Altitude Operation: Capable of functioning at altitudes up to 3,500 meters, as per EN/IEC 60068-2-13. Inclination: Meets the requirements for inclination as defined in IEC 60092-504. HALT Testing: Subjected to Highly Accelerated Life Testing (HALT) under excessive vibration, extreme temperatures, and their combinations to ensure reliability.

The system is operational during temperature changes at a rate of 1°C per minute, compliant with EN/IEC 60068-2-14. It is also designed for operation under static damp heat and cyclic damp heat conditions, meeting the requirements of EN/IEC 60068-2-78, EN/IEC 60068-2-30, and EN/IEC 60068-2-38.

60 °C

-30 °C

Current

18-26 V DC/10W

Upload of firmware updates and monitoring templates via network

Acceleration

85 °C

-40 °C

10mA/+24 Vdc/ -24 Vdc

1.5 kg

153.5 mm
