DwyerOmegaVCM-3

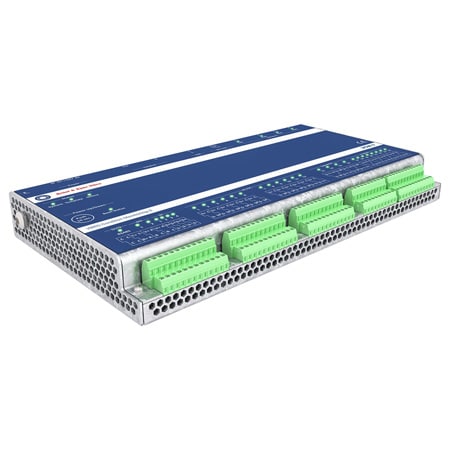

VCM-3-DIN

3 base monitor hardware, 1- to 12-channel vibration monitoring system

판매 가격: 가격 문의

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 18 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

ADC Resolution:24 bit

Accuracy:±0.5 dB

Accuracy Detail:AC Amplitude: ± 0.5dB, DC Amplitude: 1% relative of full scale with ± 40mV Offset.

Applications:Bearing Conditions, Casing Vibration, Rolling Element

Approvals:cULus certified (in preparation)

Circuit Protection:Fuse Protected Power supply inputs

Common Mode Rejection:>50 dB at 50 Hz.

Cyber Security:Secure protocols: Communication takes place through secure and encrypted protocols, such as Web-sockets, HTTPS, SCP. Port configuration: All services using a TCP/IP port (e.g. https, default port 443) can be configured to use another port NERC Compliance: The VCM-3 can be part of solutions complying with NERC CIP Standards. (North American Electric Reliability Corporation – Critical Infrastructure Protection). Strong passwords: The use of strong passwords is enforced. Compliance with NIST SP800-118 – Guide to enterprise Password Management. Can be changed by user.

Data Interface:USB

Electrical Output:4 to 20 mA

Enclosure Ratings:IP20

Frequency Response:Frequency Range: 0.1 Hz to 80 kHz (ECU: 1 kHz to 80 kHz). Lower to upper filter corner frequency span must be at least 1:3 but not exceed 1:5000. Dynamic Range: >100 dB at 1 kHz, >94 dB at 0.1 kHz. Channel Interference: >-100 dB. Total Harmonic Distortion (THD): <0.01% at 250 Hz, 4 Vpp. Phase Match Between Channels: <0.3° at 80 kHz.

Height:35 mm

Impedance Input:>100kΩ

Input Range:-25.5 to +25.5V

Input Type:Differential, Bipolar

Length:280 mm

Mounting:DIN Rail Mounting

Network Connections:3x (RJ45), 1x optical SFP connector

Network and Communications:Low-Level Protocols: Ethernet TCP/IP, IPv4 (prepared for IPv6). Network Switch Functionality: 4 network ports with built-in switch functionality. System Integration: OPC UA Server: Supports data export to controllers, SCADA systems, or other components with an internal update rate of 5 seconds. Modbus TCP Server: Enables data export to SCADA systems or other components with an internal update rate of 1 second. Modbus RTU: Support in preparation.

Number of Channels:12

Operating Environment:Vibration Resistance: Designed to withstand random and sine vibrations in accordance with EN/IEC 60068-2-6. Rough Handling: Compliant with storage standards as per EN/IEC 60068-2-31. High Altitude Operation: Capable of functioning at altitudes up to 3,500 meters, as per EN/IEC 60068-2-13. Inclination: Meets the requirements for inclination as defined in IEC 60092-504. HALT Testing: Subjected to Highly Accelerated Life Testing (HALT) under excessive vibration, extreme temperatures, and their combinations to ensure reliability.

Operating Temperature Note:The system is operational during temperature changes at a rate of 1°C per minute, compliant with EN/IEC 60068-2-14. It is also designed for operation under static damp heat and cyclic damp heat conditions, meeting the requirements of EN/IEC 60068-2-78, EN/IEC 60068-2-30, and EN/IEC 60068-2-38.

Operating Temperature, Max:60 °C

Operating Temperature, Min:-30 °C

Output Signal:Current

Power Consumption:18-26 V DC/10W

Remote Operation:Upload of firmware updates and monitoring templates via network

Sensor Type:Acceleration

Storage Temperature, Max:85 °C

Storage Temperature, Min:-40 °C

Supply Power:10mA/+24 Vdc/ -24 Vdc

Supply Power Type:DC

Weight:1.5 kg

Width:153.5 mm
