아날로그-모드버스 시리얼 인터페이스 모듈
필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.
총 7개의 상품
| 제품 번호 / 가격 | Brand | Accuracy | Analog I/O Note | Baud Rate | Common Mode Voltage | Conversion Rate | Data Interface | Data Interface Note | Digital Filter | Digital Output | Electrical Connection | Height | Impedance Input | Input Type | Lead resistance effect | Length | Materials | Memory | Mounting Note | Number of Channels, Input | Number of Channels, Output | Operating Temperature, Max | Operating Temperature, Min | Output Settling Time | Output Signal | Pull-up Resistor | Relative Humidity | Sampling Rate | Storage Temperature, Max | Storage Temperature, Min | Supply Power Note | Supply Power Type | Supply Voltage | Transmission Distance | Width | Temperature Coefficient | Voltage Measurement Range | Current Measurement Range | Isolation | Output Resolution | Voltage Output | Digital I/O Note | 수량 / 장바구니 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
D6720609,260 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | - | - | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 4.5 Hz | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | - | N/A | - | 38 mm | ABS | EEPROM | 165 mm on center | - | Digital: 15 | 70 °C | -25 °C | 0.1% FS: 1 ms | Digital | 10 kΩ | 0 to 95% RH non-condensing | - | 85 °C | -25 °C | Power Requirements: Serial = 1.0 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | - | - | - | 500 Vac, Output common to System ground | - | - | Number of Channels: 15 Open-collector outputs to 30 Vdc, 100 mA maximum, Vsat: +0.3 Vdc maximum at 100 mA, Short Circuit Protection: To 500 mA, Communications: Watchdog timer, Digital Output Update Rate: 4.5 Hz, Isolation: 500 Vac, output common to system ground, Power Requirements: Serial = 1.0W | |
D6710609,260 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | - | - | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | - | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | - | Digital | - | 38 mm | ABS | EEPROM | 165 mm on center | Digital: 15 | - | 70 °C | -25 °C | 0.1% FS: 1 ms | None | 10 kΩ | 0 to 95% RH non-condensing | - | 85 °C | -25 °C | Power Requirements: Serial = 0.75W | DC | 10 to 30 Vdc | 1219 m | 152 mm | - | - | - | 500 Vac, Output common to System ground | - | - | Digital: Number of Channels: 15 digital inputs, Internal: 10K pull-up resistors on each bit accept direct switch closure, Logic “0”: <1Vdc, Logic “1”: = >3.5Vdc, Input Burnout: To ±30 Vdc without damage, Isolation: 500 Vac, input common to system ground, Power Requirements: Serial = 0.75W | |
D6400937,340 원 | OMEGA Engineering | ± 0.05 % | Analog Input Note: Voltage: Number of Channels: 7 differential voltage inputs, Ranges: ±0.025V, ±0.05V, ±0.1V, ±1V, ±5V, ±10V, Resolution ADC: 16-bit ADC, 25/20 conversionsper second, Accuracy: ±0.05% of FS maximum, Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input impedance: 20 MΩ min, Power Requirements: Serial = 1.4W;Current: Number of Channels: 7 differential current inputs, Range: ±20 mA, Resolution ADC: 16-bit ADC, 25/20 conversions per second, Accuracy: ±0.05% of FS maximum, Span Tempco: ±50ppm/°C maximum, Voltage Drop: 2.0V maximum, Input impedance: <100 Ω (70 typical), Power Requirements: Serial = 1.4W;Thermocouple: Number of Channels: 7 differential thermocouple inputs, Thermocouple Types: J, K, T, E, R, S, B, and C, Thermocouple Accuracy (Error From all Sources) from 0 to 40°C Ambient: J, K, T, E = ±1.5°C maximum; R, S, B, C = ±3.5°C maximum; (300°C to +F.S.), Resolution ADC: 16-bit ADC, 25/20 conversionsper second, Input Impedance: 20 MΩ min, Cold Junction Compensation: Automatic, Lead Resistance Effect: <40 µV per 350 Ω, Indication: Open thermocouple and over range indication, Input Burnout Protection: To 250 Vac, Power Requirements: Serial = 1.4W | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 25/20 conversions/sec | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | Voltage: 20 MΩ, Current: <100 Ω (70 typical), Thermocouple: 20 MΩ | Voltage, Current, Thermocouple | Thermocouple: <40 µV/350 Ω | 38 mm | ABS | EEPROM | 165 mm on center | Analog: 7 DIFF | None | 70 °C | -25 °C | 0.1% FS: 1 ms | None | 10 kΩ | 0 to 95% RH non-condensing | 25 Hz (25 updates/second) | 85 °C | -25 °C | Power Requirements: Serial = 1.4 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | Voltage: ±50 ppm/°C, Current: ±50 ppm/°C | ±0.025V, ±0.05V, ±0.1V, ±1V, ±5V, ±10V | ± 20 mA | - | - | - | - | |
D6500749,880 원 | OMEGA Engineering | - | Analog Ouput Note: Number of Channels: Two analog outputs (programmable for voltage or currrent output), Voltage Range: 0 to 10 Vdc, ±10 Vdc, Current Ranges: 0 to 20 mA, 4 to 20 mA, Update Rate: 250 conversions per second, Accuracy: ±0.1%, DAC Resolution: 12-bit , Span Tempco: ±25ppm/°C maximum, Settling Time to 0.1% FS: 1 mS, Communications: Watchdog timer, Current Output Compliance: ±12 Vdc, Voltage Output Drive: 5 mA maximum, ADC Analog Output Signal Readback: 8-bit, Isolation: 500 Vac, output common to system ground ,Current Output Burnout: Protected to 250 Vac, Power Requirements: Serial = 2.1W | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 250 conversions/sec | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | - | N/A | - | 38 mm | ABS | EEPROM | 165 mm on center | - | Analog: 2 | 70 °C | -25 °C | 0.1% FS: 1 ms | Current, Voltage | 10 kΩ | 0 to 95% RH non-condensing | - | 85 °C | -25 °C | Power Requirements: Serial = 2.1 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | - | - | - | 500 Vac, Output common to System ground | DAC: 12-bit | 0 to 10 Vdc, ±10 Vdc | - | |

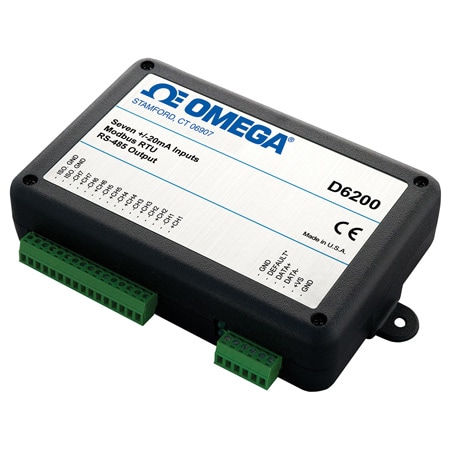

D6200749,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | - | Analog Input Note: Current: Number of Channels: 7 differential current inputs, Range: ±20 mA, Resolution ADC: 16-bit ADC, 25/20 conversions per second, Accuracy: ±0.05% of FS maximum, Span Tempco: ±50ppm/°C maximum, Voltage Drop: 2.0V maximum, Input impedance: <100 Ω (70 typical), Power Requirements: Serial = 1.4W | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 25/20 conversions/sec | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | <100 Ω (70 typical) | Current | - | 38 mm | ABS | EEPROM | 165 mm on center | Analog: 7 DIFF | None | 70 °C | -25 °C | 0.1% FS: 1 ms | None | 10 kΩ | 0 to 95% RH non-condensing | 25 Hz (25 updates/second) | 85 °C | -25 °C | Power Requirements: Serial = 1.4 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | ±50 ppm/°C | - | ± 20 mA | - | - | - | - | |
D6100749,880 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | - | Analog Input Note: Voltage: Number of Channels: 7 differential voltage inputs, Ranges: ±0.025V, ±0.05V, ±0.1V, ±1V, ±5V, ±10V, Resolution ADC: 16-bit ADC, 25/20 conversionsper second, Accuracy: ±0.05% of FS maximum, Span Tempco: ±50ppm/°C maximum, Input Burnout Protection: To 250 Vac, Input impedance: 20 MΩ min, Power Requirements: Serial = 1.4W | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 25/20 conversions/sec | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | 20 MΩ min | Voltage | - | 38 mm | ABS | EEPROM | 165 mm on center | Analog: 7 DIFF | None | 70 °C | -25 °C | 0.1% FS: 1 ms | None | 10 kΩ | 0 to 95% RH non-condensing | 25 Hz (25 updates/second) | 85 °C | -25 °C | Power Requirements: Serial = 1.4 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | ±50 ppm/°C | ±0.025V, ±0.05V, ±0.1V, ±1V, ±5V, ±10V | - | - | - | - | - | |
D6300893,560 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다. | OMEGA Engineering | ± 1.5 °C (± 2.7 °F) | Analog Input Note: Thermocouple: Number of Channels: 7 differential thermocouple inputs, Thermocouple Types: J, K, T, E, R, S, B, and C, Thermocouple Accuracy (Error From all Sources) from 0 to 40°C Ambient: J, K, T, E = ±1.5°C maximum; R, S, B, C = ±3.5°C maximum; (300°C to +F.S.), Resolution ADC: 16-bit ADC, 25/20 conversionsper second, Input Impedance: 20 MΩ min, Cold Junction Compensation: Automatic, Lead Resistance Effect: <40 µV per 350 Ω, Indication: Open thermocouple and over range indication, Input Burnout Protection: To 250 Vac, Power Requirements: Serial = 1.4W | 9600 to 115200 | Input to Output at 115 Vrms, 60 Hz: 500 Vrms | 25/20 conversions/sec | RS485 | Modbus RTU protocol;Configuration Method: Modbus | Programmable | 5 mA minimum, 10 mA maximum | Screw Terminal | 102 mm | 20 MΩ min | Thermocouple | Thermocouple: <40 µV/350 Ω | 38 mm | ABS | EEPROM | 165 mm on center | Analog: 7 DIFF | None | 70 °C | -25 °C | 0.1% FS: 1 ms | None | 10 kΩ | 0 to 95% RH non-condensing | 25 Hz (25 updates/second) | 85 °C | -25 °C | Power Requirements: Serial = 1.4 W | DC | 10 to 30 Vdc | 1219 m | 152 mm | - | - | - | - | - | - | - |
