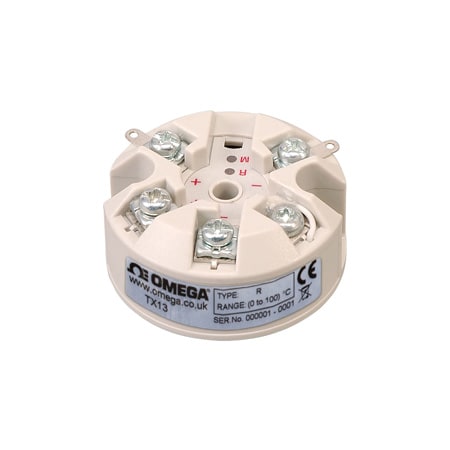

TX13-Smart-Temp-Tx | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Approvals	Calibration	Cold Junction Compensation	Cold Junction Temperature Accuracy	Diameter	Electrical Connection	Electrical Output	Height	Humidity Range	Input Accuracy	Input Control Signal	Input Type	Isolation	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Load	Probe Length	Programmable Functions	Response Time	Self Heating Effect	Sensor Type	Setup Controls	Sheath Material	Stability	Start Up Time	Storage Temperature, Max	Storage Temperature, Min	Supply Power Type	Supply Voltage	Temperature Input Range	Thermal Effects	Thermocouple Type	Update Rate, Max	Warm Up Time	Weight	수량 / 장바구니
TX13227,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 5 µA	(mA output/2000) or 5 uA (whichever is the greater)	BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F	Pushbutton	±0.05°C/°C	±0.5 °C	43 mm	Screw Terminal	4 to 20 mA	21 mm	10 to 90% RH non condensing	± 0.5 °C	-10 to 70 mV	Thermocouple, Voltage	Galvanic Isolatiion, 250 Vdc	85 °C	-40 °C	2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition)	[(Vsupply-10)/20] kΩ	0 mm	offset, Range, Sensor Burnout Indication, sensor type	1 sec	0.2 uA/V	Transmitter	Pushbutton, Program LED will flash in bursts	N/A	Offset: 0.1°C/°C;Span: 0.05°C/°C	I out < 4 mA during start up	90 °C	-50 °C	DC	10 to 30 Vdc	K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C	1 uA/°C	J, K, T, E, R, S, N	500 ms	1 min to full accuracy	31 g

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Approvals

Calibration

Cold Junction Compensation

Cold Junction Temperature Accuracy

Diameter

Electrical Connection

Electrical Output

Height

Humidity Range

Input Accuracy

Input Control Signal

Input Type

Isolation

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Load

Probe Length

Programmable Functions

Response Time

Self Heating Effect

Sensor Type

Setup Controls

Sheath Material

Stability

Start Up Time

Storage Temperature, Max

Storage Temperature, Min

Supply Power Type

Supply Voltage

Temperature Input Range

Thermal Effects

Thermocouple Type

Update Rate, Max

Warm Up Time

Weight

수량 / 장바구니

TX13227,240 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 5 µA

(mA output/2000) or 5 uA (whichever is the greater)

BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F

Pushbutton

±0.05°C/°C

±0.5 °C

43 mm

Screw Terminal

4 to 20 mA

21 mm

10 to 90% RH non condensing

± 0.5 °C

-10 to 70 mV

Thermocouple, Voltage

Galvanic Isolatiion, 250 Vdc

85 °C

-40 °C

2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition)

[(Vsupply-10)/20] kΩ

0 mm

offset, Range, Sensor Burnout Indication, sensor type

1 sec

0.2 uA/V

Transmitter

Pushbutton, Program LED will flash in bursts

N/A

Offset: 0.1°C/°C;Span: 0.05°C/°C

I out < 4 mA during start up

90 °C

-50 °C

10 to 30 Vdc

K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C

1 uA/°C

J, K, T, E, R, S, N

500 ms

1 min to full accuracy

31 g
