DwyerOmegaTX13-Smart-Temp-Tx

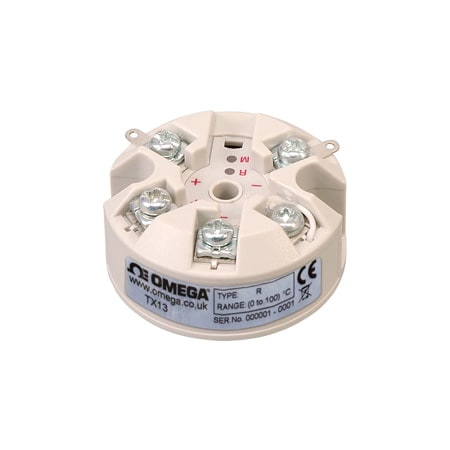

TX13

MINATURE T/C TEMP TRANSMITTER

가격: 227,240 원

VAT 10%: 22,724 원

총 금액: 249,964 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Accuracy:± 5 µA

Accuracy Detail:(mA output/2000) or 5 uA (whichever is the greater)

Approvals:BS EN 61326 ; 1998 – Electrical equipment for measurement and control ANNEX A ; ANNEX F

Calibration:Pushbutton

Cold Junction Compensation:±0.05°C/°C

Cold Junction Temperature Accuracy:±0.5 °C

Diameter:43 mm

Electrical Connection:Screw Terminal

Electrical Output:4 to 20 mA

Height:21 mm

Humidity Range:10 to 90% RH non condensing

Input Accuracy:± 0.5 °C

Input Control Signal:-10 to 70 mV

Input Type:Thermocouple, Voltage

Isolation:Galvanic Isolatiion, 250 Vdc

Operating Temperature, Max:85 °C

Operating Temperature, Min:-40 °C

Output Detail:2 wire, 4 to 20 mA current loop Maximum Output: 21.5 mA (in high burnout condition) Minimum Output: 3.8 mA (in low burnout condition)

Output Load:[(Vsupply-10)/20] kΩ

Probe Length:0 mm

Programmable Functions:offset, Range, Sensor Burnout Indication, sensor type

Response Time:1 sec

Self Heating Effect:0.2 uA/V

Sensor Type:Transmitter

Setup Controls:Pushbutton, Program LED will flash in bursts

Sheath Material:N/A

Stability:Offset: 0.1°C/°C;Span: 0.05°C/°C

Start Up Time:I out < 4 mA during start up

Storage Temperature, Max:90 °C

Storage Temperature, Min:-50 °C

Supply Power Type:DC

Supply Voltage:10 to 30 Vdc

Temperature Input Range:K: -200 to 1370 °C; J: -100 to 1200 °C; E: -100 to 1000 °C; N: -180 to 1300 °C; T: -100 to 400 °C; R -10 to 1760 °C; S: -10 to 1760 °C

Thermal Effects:1 uA/°C

Thermocouple Type:J, K, T, E, R, S, N

Update Rate, Max:500 ms

Warm Up Time:1 min to full accuracy

Weight:31 g
