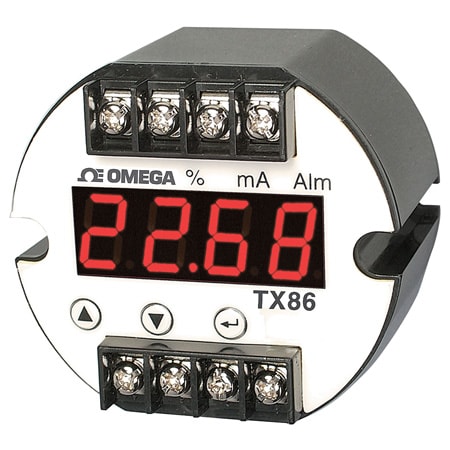

TX86-Transmitter | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Cold Junction Compensation	Diameter	Electrical Connection	Electrical Output	Height	Housing Material	Humidity Range	Input Control Signal	Input Resistance	Input Type	Isolation	Mounting	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Load	Probe Length	Programmable Functions	RTD Type	Resolution	Response Time	Sensor Type	Setup Controls	Sheath Material	Span, Min	Stability	Storage Temperature, Max	Storage Temperature, Min	Supply Current	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Coefficient	Temperature Input Range	Thermocouple Type	Weight	Wiring/Connector Table	수량 / 장바구니
TX861,045,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.2 %	± 0.2% of full scale input	±2°C	62 mm	Screw Terminal	4 to 20 mA	42 mm	Plastic, Polycarbonate	20 to 90% RH non-condensing	-5 to 60 mV	0 to 2000 Ω	Thermocouple, RTD, Resistance, Potentiometer, Voltage	1000 Vrms Continuous	Head-mounted	70 °C	-20 °C	4/20 mA calibrated; 3.8 to 20.5 mA linear Sensor Burnout: Upscale >21 mA, downscale <3.8 mA	50 x (Vsupply – 12V) Ω	0 mm	alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication	Pt100, Pt200, Pt500, Pt1000, NI120, CU10	2 μA	1 sec with dampening off	Transmitter	3 pushbuttons on front	N/A	50°C	± 0.15%/ year (Long Term Stability)	70 °C	-20 °C	30/150 µA ± 2%	12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc	DC	12 to 30 Vdc	± 0.01%/°C	0 to 260 °C	J, K, T, E, R, S, B, N	80 g	2- or 3-Wire

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Cold Junction Compensation

Diameter

Electrical Connection

Electrical Output

Height

Housing Material

Humidity Range

Input Control Signal

Input Resistance

Input Type

Isolation

Mounting

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Load

Probe Length

Programmable Functions

RTD Type

Resolution

Response Time

Sensor Type

Setup Controls

Sheath Material

Span, Min

Stability

Storage Temperature, Max

Storage Temperature, Min

Supply Current

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Input Range

Thermocouple Type

Weight

Wiring/Connector Table

수량 / 장바구니

TX861,045,430 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.2 %

± 0.2% of full scale input

±2°C

62 mm

Screw Terminal

4 to 20 mA

42 mm

Plastic, Polycarbonate

20 to 90% RH non-condensing

-5 to 60 mV

0 to 2000 Ω

Thermocouple, RTD, Resistance, Potentiometer, Voltage

1000 Vrms Continuous

Head-mounted

70 °C

-20 °C

4/20 mA calibrated; 3.8 to 20.5 mA linear Sensor Burnout: Upscale >21 mA, downscale <3.8 mA

50 x (Vsupply – 12V) Ω

0 mm

alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication

Pt100, Pt200, Pt500, Pt1000, NI120, CU10

2 μA

1 sec with dampening off

Transmitter

3 pushbuttons on front

N/A

50°C

± 0.15%/ year (Long Term Stability)

70 °C

-20 °C

30/150 µA ± 2%

12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc

12 to 30 Vdc

± 0.01%/°C

0 to 260 °C

J, K, T, E, R, S, B, N

80 g

2- or 3-Wire
