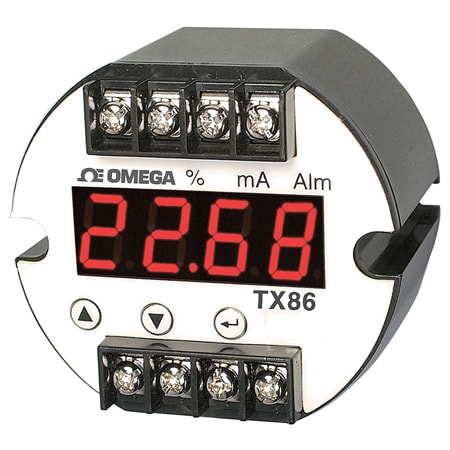

DwyerOmegaTX86-Transmitter
TX86
Temperature Transmitter for Thermocouples, RTD's, Millivolt input and Resistance
- 가격
- 1,045,430 원
- VAT 10%
- 104,543 원
- 총 금액
- 1,149,973 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.2 %
Accuracy Detail:± 0.2% of full scale input
Cold Junction Compensation:±2°C
Diameter:62 mm
Electrical Connection:Screw Terminal
Electrical Output:4 to 20 mA
Height:42 mm
Housing Material:Plastic, Polycarbonate
Humidity Range:20 to 90% RH non-condensing
Input Control Signal:-5 to 60 mV
Input Resistance:0 to 2000 Ω
Input Type:Thermocouple, RTD, Resistance, Potentiometer, Voltage
Isolation:1000 Vrms Continuous
Mounting:Head-mounted
Operating Temperature, Max:70 °C
Operating Temperature, Min:-20 °C
Output Detail:4/20 mA calibrated; 3.8 to 20.5 mA linear Sensor Burnout: Upscale >21 mA, downscale <3.8 mA
Output Load:50 x (Vsupply – 12V) Ω
Probe Length:0 mm
Programmable Functions:alarm, °C/°F, Cold Junction, control action, Dampening, Deadband, offset, Range, Sensor Burnout Indication
RTD Type:Pt100, Pt200, Pt500, Pt1000, NI120, CU10
Resolution:2 μA
Response Time:1 sec with dampening off
Sensor Type:Transmitter
Setup Controls:3 pushbuttons on front
Sheath Material:N/A
Span, Min:50°C
Stability:± 0.15%/ year (Long Term Stability)
Storage Temperature, Max:70 °C
Storage Temperature, Min:-20 °C
Supply Current:30/150 µA ± 2%
Supply Power Note:12 to 30 Vdc, LED indicator reverse polarity protected 60 Vdc
Supply Power Type:DC
Supply Voltage:12 to 30 Vdc
Temperature Coefficient:± 0.01%/°C
Temperature Input Range:0 to 260 °C
Thermocouple Type:J, K, T, E, R, S, B, N
Weight:80 g
Wiring/Connector Table:2- or 3-Wire
