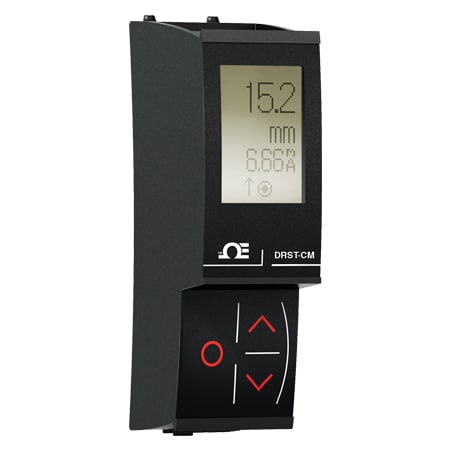

DRST-CM-Programmer | Britestone

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Approvals Note	Data Interface	Display Type	EMC Immunity Note	Electrical Connection	Enclosure Ratings	Height	Installation	Isolation	Length	Noise Calibration	Operating Temperature, Max	Operating Temperature, Min	Power Consumption	Relative Humidity	Response Time	Response Time Note	Storage Temperature, Max	Storage Temperature, Min	Update Rate	Weight	Width	수량 / 장바구니
DRST-CM336,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	EMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011	RS485, Modbus RTU	N/A	NAMUR NE21, A criterion, burst: No loss of communication	RJ45	IP20	73.2 mm	Pollution degree 2 and measurement/overvoltage category II	Isolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation	26.5 mm	>60 dB	60 °C	-20 °C	max 0.15 W	<95% RH	< 20 ms	Response delay: 0…1000 ms Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200 Automatic baudrate detection: Yes - can be configured ON or OFF Parity: Even, Odd, None Stop bit(s): 1 or 2 Digital addressing: 1...247 Response delay: 0...1000 ms	85 °C	-20 °C	> 50 Hz	30 g	23.3 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Approvals Note

Data Interface

Display Type

EMC Immunity Note

Electrical Connection

Enclosure Ratings

Height

Installation

Isolation

Length

Noise Calibration

Operating Temperature, Max

Operating Temperature, Min

Power Consumption

Relative Humidity

Response Time

Response Time Note

Storage Temperature, Max

Storage Temperature, Min

Update Rate

Weight

Width

수량 / 장바구니

DRST-CM336,100 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

EMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011

RS485, Modbus RTU

N/A

NAMUR NE21, A criterion, burst: No loss of communication

RJ45

IP20

73.2 mm

Pollution degree 2 and measurement/overvoltage category II

Isolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation

26.5 mm

>60 dB

60 °C

-20 °C

max 0.15 W

<95% RH

< 20 ms

Response delay: 0…1000 ms Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200 Automatic baudrate detection: Yes - can be configured ON or OFF Parity: Even, Odd, None Stop bit(s): 1 or 2 Digital addressing: 1...247 Response delay: 0...1000 ms

85 °C

-20 °C

> 50 Hz

30 g

23.3 mm
