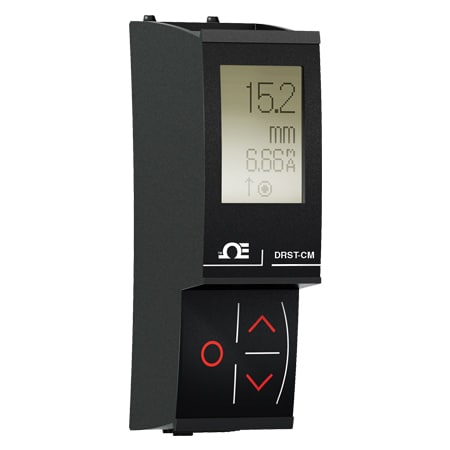

DwyerOmegaDRST-CM-Programmer
DRST-CM
- 가격
- 336,100 원
- VAT 10%
- 33,610 원
- 총 금액
- 369,710 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Approvals Note:EMC:2014/30/EU, LVD:2014/35/EU, EAC:TR-CU 020/2011
Data Interface:RS485, Modbus RTU
Display Type:N/A
EMC Immunity Note:NAMUR NE21, A criterion, burst: No loss of communication
Electrical Connection:RJ45
Enclosure Ratings:IP20
Height:73.2 mm
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:Isolation voltage, test/working :2.5 kVAC / 250 VAC reinforced isolation
Length:26.5 mm
Noise Calibration:>60 dB
Operating Temperature, Max:60 °C
Operating Temperature, Min:-20 °C
Power Consumption:max 0.15 W
Relative Humidity:<95% RH
Response Time:< 20 ms
Response Time Note:Response delay: 0…1000 ms Data rates, baud: 2400, 4800, 9600, 19200,38400, 57600, 115200 Automatic baudrate detection: Yes - can be configured ON or OFF Parity: Even, Odd, None Stop bit(s): 1 or 2 Digital addressing: 1...247 Response delay: 0...1000 ms
Storage Temperature, Max:85 °C
Storage Temperature, Min:-20 °C
Update Rate:> 50 Hz
Weight:30 g
Width:23.3 mm
