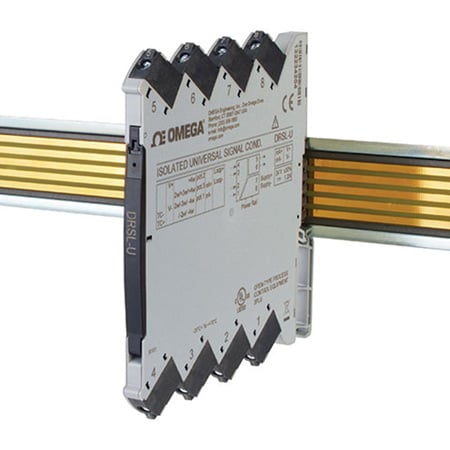

DRSL-U-Univ-Input-Sig-Cnd

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

Brand

OMEGA Engineering(1)

Accuracy

± 0.1 %(1)

Accuracy Detail

All Input Types: ≤±0.1% of span (selected input range)(1)

Additional Features 1

Approvals

Calibration Temperature, Max

Calibration Temperature, Min

Current Measurement Range

EMC Immunity Note

EMC Standard

Electrical Output

Enclosure Ratings

Height

Input Type

Installation

Isolation

LED Indicators

Length

Load Resistance

Mounting

Noise Calibration

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Output Value

Power Consumption

Relative Humidity

Response Time

Response Time Note

Screw Terminal Torque

Stability

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Coefficient Note

Temperature Measurement Range

Voltage Measurement Range

Voltage Output Range

Weight

Width

Wire Gauge

총 1개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Approvals	Calibration Temperature, Max	Calibration Temperature, Min	Current Measurement Range	EMC Immunity Note	EMC Standard	Electrical Output	Enclosure Ratings	Height	Input Type	Installation	Isolation	LED Indicators	Length	Load Resistance	Mounting	Noise Calibration	Number of Inputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Output Value	Power Consumption	Relative Humidity	Response Time	Response Time Note	Screw Terminal Torque	Stability	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Coefficient	Temperature Coefficient Note	Temperature Measurement Range	Voltage Measurement Range	Voltage Output Range	Weight	Width	Wire Gauge	수량 / 장바구니
DRSL-U467,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	All Input Types: ≤±0.1% of span (selected input range)	Universal	CE, UL, RoHS	28 °C	20 °C	0 to 20 mA	NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)	NAMUR NE 21	4 to 20 mA	IP20	113 mm	Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage	Pollution degree 2 and measurement/overvoltage category II	300 Vac	Status LED: Green LED indicates ;operational status of the unit and ;input sensor; Normal Operation: Flashes for;15 ms at 13 Hz rate;Sensor Error: Flashes for 15 ms;at 1 Hz rate;Hardware Failure: LED off	115 mm	Current Output: 20 mA/600 Ω/15 Vdc max, Voltage Output:>10 kΩ;	DIN Rail 35 mm Standard, EN 60715	>60 dB	6	70 °C	-25 °C	Current Output Signal Range: 0 to 20 mA (span) Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, 20 to 0 mA and 20 to 4 mA Range Limits (NAMUR NE43 Out of Range):Below 3.8 mA or above 20.5 mA for4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection:Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Current Limit: ≤28 mA Voltage Output Programmable Signal Ranges:0 to 1V, 0.2 to 1V, 0 to 5V, 1 to 5V,0 to 10V, 2 to 10V, 1 to 0.2V, 1 to 0V,5 to 1V, 5 to 0V, 10 to 2Vand 10 to 0V	Current, Voltage	Process	1.2 W, Internal - max 0.65 W	0 to 95% RH (non-condensing)	≤ 1 ms	Response Time (0 to 90%, 100 to 10%) for Temperature Input: ≤1 s Response Time (0 to 90%, 100 to 10%) for mA/V input: ≤400 ms	0.5 Nm	Load Stability: ≤0.01% of span/100 Ω	85 °C	-40 °C	16.8 to 31.2 Vdc via power rail or connectors	DC	16.8 to 31.2 Vdc	<±0.01% of span/°C	All Input Types: ≤± 0.01% of span/°C	J: -100 to 1200°C, K: -180 to 1372°C, T: -200 to 400°C, E: -100 to 1000°C, R: -50 to 1760°C, S: -50 to 1760°C, B: 0 to 1820°C, N: -180 to 1300°C, L: -200 to 900°C, U: -200 to 600°C, Pt 100: -200 to 850°C	0 to 12V	0 to 10 Vdc	70 g	6.1 mm	26 to 12 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Approvals

Calibration Temperature, Max

Calibration Temperature, Min

Current Measurement Range

EMC Immunity Note

EMC Standard

Electrical Output

Enclosure Ratings

Height

Input Type

Installation

Isolation

LED Indicators

Length

Load Resistance

Mounting

Noise Calibration

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Output Value

Power Consumption

Relative Humidity

Response Time

Response Time Note

Screw Terminal Torque

Stability

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Coefficient Note

Temperature Measurement Range

Voltage Measurement Range

Voltage Output Range

Weight

Width

Wire Gauge

수량 / 장바구니

DRSL-U467,870 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.1 %

All Input Types: ≤±0.1% of span (selected input range)

Universal

CE, UL, RoHS

28 °C

20 °C

0 to 20 mA

NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)

NAMUR NE 21

4 to 20 mA

IP20

113 mm

Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage

Pollution degree 2 and measurement/overvoltage category II

300 Vac

Status LED: Green LED indicates ;operational status of the unit and ;input sensor; Normal Operation: Flashes for;15 ms at 13 Hz rate;Sensor Error: Flashes for 15 ms;at 1 Hz rate;Hardware Failure: LED off

115 mm

Current Output: 20 mA/600 Ω/15 Vdc max, Voltage Output:>10 kΩ;

DIN Rail 35 mm Standard, EN 60715

>60 dB

70 °C

-25 °C

Current Output Signal Range: 0 to 20 mA (span) Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, 20 to 0 mA and 20 to 4 mA Range Limits (NAMUR NE43 Out of Range):Below 3.8 mA or above 20.5 mA for4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection:Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Current Limit: ≤28 mA Voltage Output Programmable Signal Ranges:0 to 1V, 0.2 to 1V, 0 to 5V, 1 to 5V,0 to 10V, 2 to 10V, 1 to 0.2V, 1 to 0V,5 to 1V, 5 to 0V, 10 to 2Vand 10 to 0V

Current, Voltage

Process

1.2 W, Internal - max 0.65 W

0 to 95% RH (non-condensing)

≤ 1 ms

Response Time (0 to 90%, 100 to 10%) for Temperature Input: ≤1 s Response Time (0 to 90%, 100 to 10%) for mA/V input: ≤400 ms

0.5 Nm

Load Stability: ≤0.01% of span/100 Ω

85 °C

-40 °C

16.8 to 31.2 Vdc via power rail or connectors

16.8 to 31.2 Vdc

<±0.01% of span/°C

All Input Types: ≤± 0.01% of span/°C

J: -100 to 1200°C, K: -180 to 1372°C, T: -200 to 400°C, E: -100 to 1000°C, R: -50 to 1760°C, S: -50 to 1760°C, B: 0 to 1820°C, N: -180 to 1300°C, L: -200 to 900°C, U: -200 to 600°C, Pt 100: -200 to 850°C

0 to 12V

0 to 10 Vdc

70 g

6.1 mm

26 to 12 AWG
