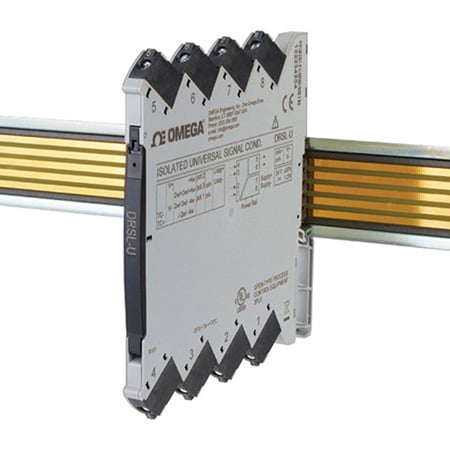

DwyerOmegaDRSL-U-Univ-Input-Sig-Cnd
DRSL-U
- 가격
- 467,870 원
- VAT 10%
- 46,787 원
- 총 금액
- 514,657 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Accuracy Detail:All Input Types: ≤±0.1% of span (selected input range)
Additional Features 1:Universal
Approvals:CE, UL, RoHS
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
Current Measurement Range:0 to 20 mA
EMC Immunity Note:NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC Standard:NAMUR NE 21
Electrical Output:4 to 20 mA
Enclosure Ratings:IP20
Height:113 mm
Input Type:Thermocouple, RTD, Resistance, Potentiometer, Current, Voltage
Installation:Pollution degree 2 and measurement/overvoltage category II
Isolation:300 Vac
LED Indicators:Status LED: Green LED indicates ;operational status of the unit and ;input sensor; Normal Operation: Flashes for;15 ms at 13 Hz rate;Sensor Error: Flashes for 15 ms;at 1 Hz rate;Hardware Failure: LED off
Length:115 mm
Load Resistance:Current Output: 20 mA/600 Ω/15 Vdc max, Voltage Output:>10 kΩ;
Mounting:DIN Rail 35 mm Standard, EN 60715
Noise Calibration:>60 dB
Number of Inputs:6
Operating Temperature, Max:70 °C
Operating Temperature, Min:-25 °C
Output Detail:Current Output Signal Range: 0 to 20 mA (span) Programmable Signal Ranges:0 to 20 mA, 4 to 20 mA, 20 to 0 mA and 20 to 4 mA Range Limits (NAMUR NE43 Out of Range):Below 3.8 mA or above 20.5 mA for4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection:Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Current Limit: ≤28 mA Voltage Output Programmable Signal Ranges:0 to 1V, 0.2 to 1V, 0 to 5V, 1 to 5V,0 to 10V, 2 to 10V, 1 to 0.2V, 1 to 0V,5 to 1V, 5 to 0V, 10 to 2Vand 10 to 0V
Output Signal:Current, Voltage
Output Value:Process
Power Consumption:1.2 W, Internal - max 0.65 W
Relative Humidity:0 to 95% RH (non-condensing)
Response Time:≤ 1 ms
Response Time Note:Response Time (0 to 90%, 100 to 10%) for Temperature Input: ≤1 s Response Time (0 to 90%, 100 to 10%) for mA/V input: ≤400 ms
Screw Terminal Torque:0.5 Nm
Stability:Load Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:16.8 to 31.2 Vdc via power rail or connectors
Supply Power Type:DC
Supply Voltage:16.8 to 31.2 Vdc
Temperature Coefficient:<±0.01% of span/°C
Temperature Coefficient Note:All Input Types: ≤± 0.01% of span/°C
Temperature Measurement Range:J: -100 to 1200°C, K: -180 to 1372°C, T: -200 to 400°C, E: -100 to 1000°C, R: -50 to 1760°C, S: -50 to 1760°C, B: 0 to 1820°C, N: -180 to 1300°C, L: -200 to 900°C, U: -200 to 600°C, Pt 100: -200 to 850°C
Voltage Measurement Range:0 to 12V
Voltage Output Range:0 to 10 Vdc
Weight:70 g
Width:6.1 mm
Wire Gauge:26 to 12 AWG
