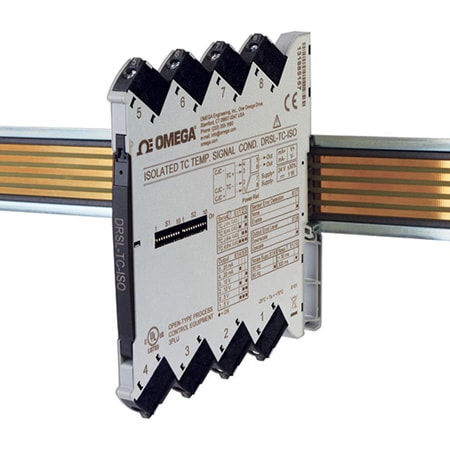

DRSL-TC-Srs-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 2개의 상품

제품 번호 / 가격	Brand	Accuracy	Accuracy Detail	Additional Features 1	Approvals	Calibration Temperature, Max	Calibration Temperature, Min	EMC Immunity Note	EMC Standard	Electrical Output	Enclosure Ratings	Height	Input Range Note	Input Type	Installation	LED Indicators	Length	Load Resistance	Mounting	Number of Inputs	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Signal	Output Value	Power Consumption	Relative Humidity	Response Time	Response Time Note	Screw Terminal Torque	Stability	Storage Temperature, Max	Storage Temperature, Min	Supply Power Note	Supply Power Type	Supply Voltage	Temperature Coefficient	Temperature Measurement Range	Voltage Output Range	Weight	Width	Wire Gauge	수량 / 장바구니
DRSL-TC-ISO331,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.05 %	CJC Accuracy: ±0.15°C	Isolated	CE, UL, RoHS	28 °C	20 °C	NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)	NAMUR NE 21	4 to 20 mA	IP20	113 mm	Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable);CJC Accuracy via External CJC ;(Pt100 RTD Sensor): Better than ±0.15°C (DRSL-TC-ISO only);CJC via Internally Mounted Sensor:Better than ±2.5°C;Open Thermocouple Detection:Yes (DIP switch selectable upscaleor downscale)	Isolated thermocouple	Pollution degree 2 and measurement/overvoltage category II	Green LED indicates operational status of the unit and input sensor	115 mm	Voltage Output :>10 kΩ min,;Current Output: 21 mA/600 Ω /12.6V max	DIN Rail 35 mm Standard, EN 60715	1	70 °C	-25 °C	Current Output Programmable Signal Ranges:0 to 20 and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA for 4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection (Dip Switch Selectable for Enable or None):Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Incorrect DIP-Switch Setting Identification: 0 mA Output Error Level: DIP switch selectable for upscale or downscale Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V and 1 to 5V Range Limits (Out of Range):Range ±2.5% Incorrect DIP Switch Setting Identification: 0V	Current, Voltage	Process	0.7 W, Internal - 0.65 W	0 to 95% RH (non-condensing)	< 30 ms	Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)	0.5 Nm	Load Stability: ≤0.01% of span/100 Ω	85 °C	-40 °C	16.8 to 31.2 Vdc via power rail or connectors	DC	16.8 to 31.2 Vdc	<±0.01% of span/°C	J: 100 to 1200°C, K: 180 to 1372°C	0 to 10 Vdc	70 g	6.1 mm	26 to 12 AWG
DRSL-TC284,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	± 0.1 %	-	Non-Isolated	CE, UL, RoHS	28 °C	20 °C	NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)	NAMUR NE 21	4 to 20 mA	IP20	113 mm	Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable);CJC Accuracy via External CJC ;(Pt100 RTD Sensor): Better than ±0.15°C (DRSL-TC-ISO only);CJC via Internally Mounted Sensor:Better than ±2.5°C;Open Thermocouple Detection:Yes (DIP switch selectable upscaleor downscale)	Thermocouple	Pollution degree 2 and measurement/overvoltage category II	Green LED indicates operational status of the unit and input sensor	115 mm	Voltage Output :>10 kΩ min,;Current Output: 21 mA/600 Ω /12.6V max	DIN Rail 35 mm Standard, EN 60715	1	70 °C	-25 °C	Current Output Programmable Signal Ranges:0 to 20 and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA for 4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection (Dip Switch Selectable for Enable or None):Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Incorrect DIP-Switch Setting Identification: 0 mA Output Error Level: DIP switch selectable for upscale or downscale Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V and 1 to 5V Range Limits (Out of Range):Range ±2.5% Incorrect DIP Switch Setting Identification: 0V	Current, Voltage	Process	0.7 W, Internal - 0.65 W	0 to 95% RH (non-condensing)	< 30 ms	Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)	0.5 Nm	Load Stability: ≤0.01% of span/100 Ω	85 °C	-40 °C	16.8 to 31.2 Vdc via connectors	DC	16.8 to 31.2 Vdc	<±0.01% of span/°C	J: 100 to 1200°C, K: 180 to 1372°C	0 to 10 Vdc	70 g	6.1 mm	26 to 12 AWG

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Accuracy

Accuracy Detail

Additional Features 1

Approvals

Calibration Temperature, Max

Calibration Temperature, Min

EMC Immunity Note

EMC Standard

Electrical Output

Enclosure Ratings

Height

Input Range Note

Input Type

Installation

LED Indicators

Length

Load Resistance

Mounting

Number of Inputs

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Signal

Output Value

Power Consumption

Relative Humidity

Response Time

Response Time Note

Screw Terminal Torque

Stability

Storage Temperature, Max

Storage Temperature, Min

Supply Power Note

Supply Power Type

Supply Voltage

Temperature Coefficient

Temperature Measurement Range

Voltage Output Range

Weight

Width

Wire Gauge

수량 / 장바구니

DRSL-TC-ISO331,290 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

± 0.05 %

CJC Accuracy: ±0.15°C

Isolated

CE, UL, RoHS

28 °C

20 °C

NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)

NAMUR NE 21

4 to 20 mA

IP20

113 mm

Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable);CJC Accuracy via External CJC ;(Pt100 RTD Sensor): Better than ±0.15°C (DRSL-TC-ISO only);CJC via Internally Mounted Sensor:Better than ±2.5°C;Open Thermocouple Detection:Yes (DIP switch selectable upscaleor downscale)

Isolated thermocouple

Pollution degree 2 and measurement/overvoltage category II

Green LED indicates operational status of the unit and input sensor

115 mm

Voltage Output :>10 kΩ min,;Current Output: 21 mA/600 Ω /12.6V max

DIN Rail 35 mm Standard, EN 60715

70 °C

-25 °C

Current Output Programmable Signal Ranges:0 to 20 and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA for 4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection (Dip Switch Selectable for Enable or None):Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Incorrect DIP-Switch Setting Identification: 0 mA Output Error Level: DIP switch selectable for upscale or downscale Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V and 1 to 5V Range Limits (Out of Range):Range ±2.5% Incorrect DIP Switch Setting Identification: 0V

Current, Voltage

Process

0.7 W, Internal - 0.65 W

0 to 95% RH (non-condensing)

< 30 ms

Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)

0.5 Nm

Load Stability: ≤0.01% of span/100 Ω

85 °C

-40 °C

16.8 to 31.2 Vdc via power rail or connectors

16.8 to 31.2 Vdc

<±0.01% of span/°C

J: 100 to 1200°C, K: 180 to 1372°C

0 to 10 Vdc

70 g

6.1 mm

26 to 12 AWG

DRSL-TC284,920 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
