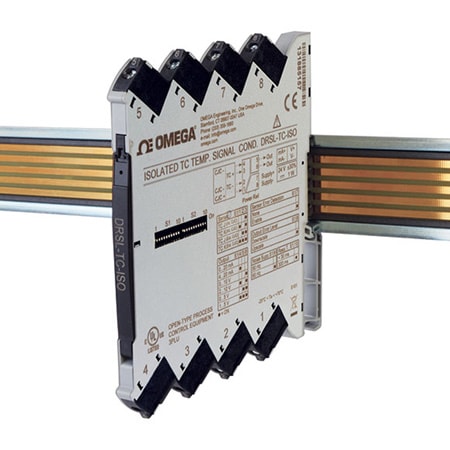

DwyerOmegaDRSL-TC-Srs-Sig-Cond
DRSL-TC
T/C INPUT SIG COND CE
- 가격
- 284,920 원
- VAT 10%
- 28,492 원
- 총 금액
- 313,412 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Accuracy:± 0.1 %
Additional Features 1:Non-Isolated
Approvals:CE, UL, RoHS
Calibration Temperature, Max:28 °C
Calibration Temperature, Min:20 °C
EMC Immunity Note:NAMUR NE 21, A Criterion, Burst: <±1% of span (span = selected input range)
EMC Standard:NAMUR NE 21
Electrical Output:4 to 20 mA
Enclosure Ratings:IP20
Height:113 mm
Input Range Note:Sensor and Cable Specifications:5 kΩ per wire;Cold Junction Compensation (CJC): Internal or external (selectable);CJC Accuracy via External CJC ;(Pt100 RTD Sensor): Better than ±0.15°C (DRSL-TC-ISO only);CJC via Internally Mounted Sensor:Better than ±2.5°C;Open Thermocouple Detection:Yes (DIP switch selectable upscaleor downscale)
Input Type:Thermocouple
Installation:Pollution degree 2 and measurement/overvoltage category II
LED Indicators:Green LED indicates operational status of the unit and input sensor
Length:115 mm
Load Resistance:Voltage Output :>10 kΩ min,;Current Output: 21 mA/600 Ω /12.6V max
Mounting:DIN Rail 35 mm Standard, EN 60715
Number of Inputs:1
Operating Temperature, Max:70 °C
Operating Temperature, Min:-25 °C
Output Detail:Current Output Programmable Signal Ranges:0 to 20 and 4 to 20 mA Range Limits (NAMUR NE43 Out of Range): Below 3.8 mA or above 20.5 mA for 4 to 20 mA output; 0 mA or above 20.5 mA for 0 to 20 mA output Sensor Error Detection (Dip Switch Selectable for Enable or None):Below 3.5 mA or above 23 mA for4 to 20 mA output; 0 mA or above23 mA for 0 to 20 mA output Incorrect DIP-Switch Setting Identification: 0 mA Output Error Level: DIP switch selectable for upscale or downscale Voltage Output Programmable Signal Ranges:0 to 10V, 2 to 10V, 0 to 5V and 1 to 5V Range Limits (Out of Range):Range ±2.5% Incorrect DIP Switch Setting Identification: 0V
Output Signal:Current, Voltage
Output Value:Process
Power Consumption:0.7 W, Internal - 0.65 W
Relative Humidity:0 to 95% RH (non-condensing)
Response Time:< 30 ms
Response Time Note:Response Time (0 to 90%, 100 to 10%): <30 ms/300 ms (selectable, provides either fast response or signal dampening as needed)
Screw Terminal Torque:0.5 Nm
Stability:Load Stability: ≤0.01% of span/100 Ω
Storage Temperature, Max:85 °C
Storage Temperature, Min:-40 °C
Supply Power Note:16.8 to 31.2 Vdc via connectors
Supply Power Type:DC
Supply Voltage:16.8 to 31.2 Vdc
Temperature Coefficient:<±0.01% of span/°C
Temperature Measurement Range:J: 100 to 1200°C, K: 180 to 1372°C
Voltage Output Range:0 to 10 Vdc
Weight:70 g
Width:6.1 mm
Wire Gauge:26 to 12 AWG
