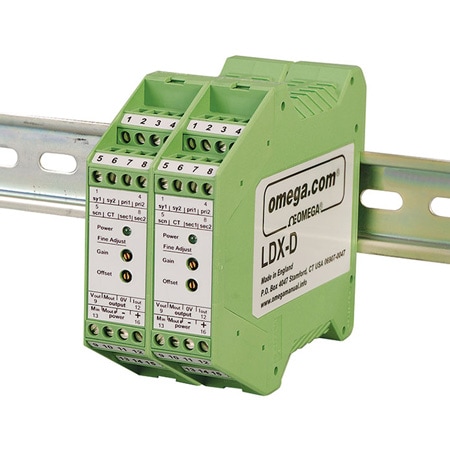

LDX-D-AC-LVDT-Sig-Cond

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Adjustments	Approvals	Bandwidth	Electrical Connection	Electrical Output	Excitation Voltage	Height	Input Type	Length	Load Resistance	Materials	Mounting	Number of Inputs	Offset	Operating Temperature, Max	Operating Temperature, Min	Output Detail	Output Ripple	Output Signal	Output Value	Storage Temperature, Max	Storage Temperature, Min	Supply Power Effects	Supply Power Note	Supply Power Type	Supply Voltage	Voltage Measurement Range	Voltage Output Range	Warm Up Time	Weight	Width	수량 / 장바구니
LDX-D1,604,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Front-Panel Fine-Adjustment potentiometers facilitate setup	CE	500 Hz or 1 kHz	Screw Terminal	20 mA	3 Vrms	99 mm	AC Voltage	111 mm	Load Resistance: 100 kΩ;Output Load: 150 Ω	Green Polyamide	DIN Rail 35 mm Standard	1	Output Offset: Up to 100 %	60 °C	0 °C	Voltage Output: Up to ±10 Vdc Current Output: Up to 20 mA into 150 Ω load	<1 mVrms	Current, Voltage	Process	85 °C	-20 °C	Transducer Primary Frequency (kHz): 5-, 10- or 13-link selectable	Supply Current: Voltage Range: 140 mA @ 10 Vdc, 60 mA @ 30 Vdc Current Range: 160 mA @ 10 Vdc, 70 mA @ 30 Vdc	DC	10 to 30 Vdc	55 to 5000 mV	± 10 Vdc	15 min	120 g	22.5 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Adjustments

Approvals

Bandwidth

Electrical Connection

Electrical Output

Excitation Voltage

Height

Input Type

Length

Load Resistance

Materials

Mounting

Number of Inputs

Offset

Operating Temperature, Max

Operating Temperature, Min

Output Detail

Output Ripple

Output Signal

Output Value

Storage Temperature, Max

Storage Temperature, Min

Supply Power Effects

Supply Power Note

Supply Power Type

Supply Voltage

Voltage Measurement Range

Voltage Output Range

Warm Up Time

Weight

Width

수량 / 장바구니

LDX-D1,604,760 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Front-Panel Fine-Adjustment potentiometers facilitate setup

500 Hz or 1 kHz

Screw Terminal

20 mA

3 Vrms

99 mm

AC Voltage

111 mm

Load Resistance: 100 kΩ;Output Load: 150 Ω

Green Polyamide

DIN Rail 35 mm Standard

Output Offset: Up to 100 %

60 °C

0 °C

Voltage Output: Up to ±10 Vdc Current Output: Up to 20 mA into 150 Ω load

<1 mVrms

Current, Voltage

Process

85 °C

-20 °C

Transducer Primary Frequency (kHz): 5-, 10- or 13-link selectable

Supply Current: Voltage Range: 140 mA @ 10 Vdc, 60 mA @ 30 Vdc Current Range: 160 mA @ 10 Vdc, 70 mA @ 30 Vdc

10 to 30 Vdc

55 to 5000 mV

± 10 Vdc

15 min

120 g

22.5 mm
