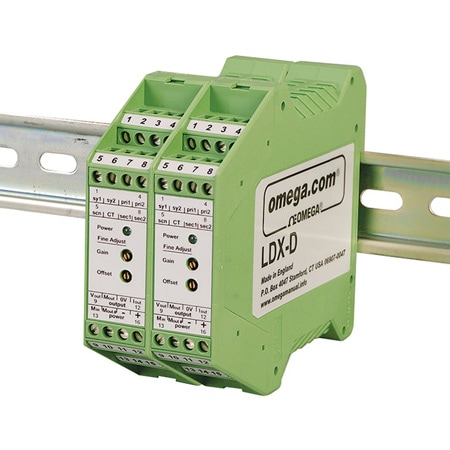

DwyerOmegaLDX-D-AC-LVDT-Sig-Cond

LDX-D

DIN RAIL

가격: 1,604,760 원

VAT 10%: 160,476 원

총 금액: 1,765,236 원

재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.

무료 배송 10만원 이상

납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

연구비카드 사용가능

제품 사양

Brand:OMEGA Engineering

Adjustments:Front-Panel Fine-Adjustment potentiometers facilitate setup

Approvals:CE

Bandwidth:500 Hz or 1 kHz

Electrical Connection:Screw Terminal

Electrical Output:20 mA

Excitation Voltage:3 Vrms

Height:99 mm

Input Type:AC Voltage

Length:111 mm

Load Resistance:Load Resistance: 100 kΩ;Output Load: 150 Ω

Materials:Green Polyamide

Mounting:DIN Rail 35 mm Standard

Number of Inputs:1

Offset:Output Offset: Up to 100 %

Operating Temperature, Max:60 °C

Operating Temperature, Min:0 °C

Output Detail:Voltage Output: Up to ±10 Vdc Current Output: Up to 20 mA into 150 Ω load

Output Ripple:<1 mVrms

Output Signal:Current, Voltage

Output Value:Process

Storage Temperature, Max:85 °C

Storage Temperature, Min:-20 °C

Supply Power Effects:Transducer Primary Frequency (kHz): 5-, 10- or 13-link selectable

Supply Power Note:Supply Current: Voltage Range: 140 mA @ 10 Vdc, 60 mA @ 30 Vdc Current Range: 160 mA @ 10 Vdc, 70 mA @ 30 Vdc

Supply Power Type:DC

Supply Voltage:10 to 30 Vdc

Voltage Measurement Range:55 to 5000 mV

Voltage Output Range:± 10 Vdc

Warm Up Time:15 min

Weight:120 g

Width:22.5 mm
