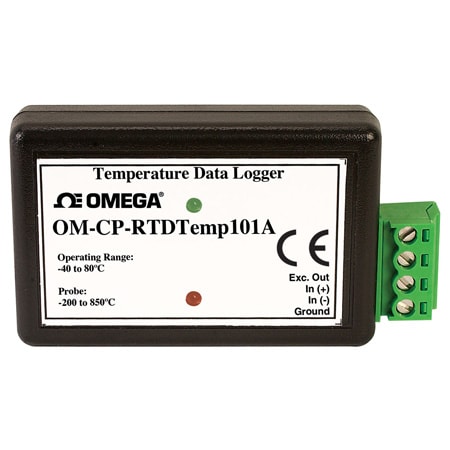

OM-CP-RTDTEMP101A-Logger

모델 보기

필터 또는 검색 기능을 사용하여 원하시는 모델을 찾으십시오.

총 1개의 상품

제품 번호 / 가격	Brand	Battery Size and Type	Battery life	Calibration	Data Interface	Data Interface Note	Electrical Connection	Enclosure	Form factor	Height	LED Indicators	Length	Materials	Measurement Type	Memory	Memory Modes	Memory Note	Nominal Resistance	Number of Measurements	Operating Temperature, Max	Operating Temperature, Min	Process Temperature, Max	Process Temperature, Min	Real Time Recording	Samples,Max	Sampling Rate	Sampling Rate Note	Start Modes	Stop Modes	Supply Power Type	Temperature Resolution	Temperature Sensor Type	Time Accuracy	Waterbox Depth	Waterbox Height	Waterbox Width	Weight	Width	수량 / 장바구니
OM-CP-RTDTEMP101A422,910 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.	OMEGA Engineering	Li-ion	up to 10 yr	Digital calibration through software	USB	USB (interface cable required); 115,200 baud	Screw Terminal	Aluminium	Benchtop	16 mm	Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition	36 mm	ABS	Temperature	1340000	Yes	1,340,000 readings; software configurable memory wrap 666,000 readings in multiple start/stop mode	18 - 400 Ω	1	80 °C	-40 °C	850 °C	-200 °C	The device may be used with PC to monitor and record data in real-time	670000	1 Hz (1 update/second)	1 reading every second to 1 every 24 hours.	Adjustable Delay Start, Immediate Start, Push-button	Adjustable Delay Stop, Manual Through Software	Battery	0.001 °C	RTD	± 1 minute/month	39 mm	74 mm	148 mm	24 g	56 mm

스페이스를 누른 채 마우스 휠을 움직이면 표를 좌우로 스크롤할 수 있습니다.

제품 번호 / 가격

Brand

Battery Size and Type

Battery life

Calibration

Data Interface

Data Interface Note

Electrical Connection

Enclosure

Form factor

Height

LED Indicators

Length

Materials

Measurement Type

Memory

Memory Modes

Memory Note

Nominal Resistance

Number of Measurements

Operating Temperature, Max

Operating Temperature, Min

Process Temperature, Max

Process Temperature, Min

Real Time Recording

Samples,Max

Sampling Rate

Sampling Rate Note

Start Modes

Stop Modes

Supply Power Type

Temperature Resolution

Temperature Sensor Type

Time Accuracy

Waterbox Depth

Waterbox Height

Waterbox Width

Weight

Width

수량 / 장바구니

OM-CP-RTDTEMP101A422,910 원2 weeks리드타임은 상황에 따라 달라질 수 있습니다.

OMEGA Engineering

Li-ion

up to 10 yr

Digital calibration through software

USB

USB (interface cable required); 115,200 baud

Screw Terminal

Aluminium

Benchtop

16 mm

Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition

36 mm

ABS

Temperature

1340000

Yes

1,340,000 readings; software configurable memory wrap 666,000 readings in multiple start/stop mode

18 - 400 Ω

80 °C

-40 °C

850 °C

-200 °C

The device may be used with PC to monitor and record data in real-time

670000

1 Hz (1 update/second)

1 reading every second to 1 every 24 hours.

Adjustable Delay Start, Immediate Start, Push-button

Adjustable Delay Stop, Manual Through Software

Battery

0.001 °C

RTD

± 1 minute/month

39 mm

74 mm

148 mm

24 g

56 mm
