DwyerOmegaOM-CP-RTDTEMP101A-Logger
OM-CP-RTDTEMP101A

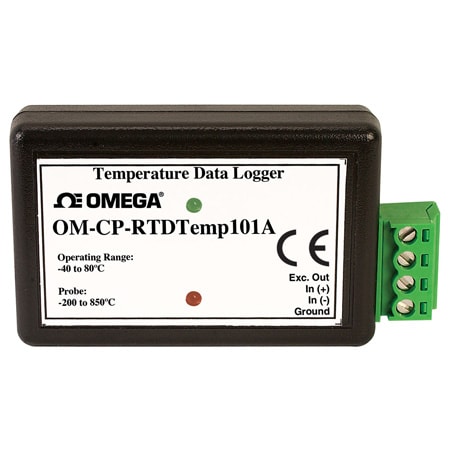

Precision RTD Temperature Data Logger
- 가격
- 422,910 원
- VAT 10%
- 42,291 원
- 총 금액
- 465,201 원
수량
재고: 0개국내 재고가 없어도 주문 가능합니다. 주문 시 해외 재고를 확인합니다.
무료 배송 10만원 이상
납기: 2 weeks리드타임은 상황에 따라 달라질 수 있습니다.
연구비카드 사용가능
실시간 문의하기제품 사양
Brand:OMEGA Engineering
Battery Size and Type:Li-ion
Battery life:up to 10 yr
Calibration:Digital calibration through software
Data Interface:USB
Data Interface Note:USB (interface cable required); 115,200 baud
Electrical Connection:Screw Terminal
Enclosure:Aluminium
Form factor:Benchtop
Height:16 mm
LED Indicators:Green LED Blinks: 10 second rate to indicate logging 15 second rate to indicate delay start mode ;Red LED Blinks: 10 second rate to indicate low battery and/or full memory 1 second rate to indicate an alarm condition
Length:36 mm
Materials:ABS
Measurement Type:Temperature
Memory:1340000
Memory Modes:Yes
Memory Note:1,340,000 readings; software configurable memory wrap 666,000 readings in multiple start/stop mode
Nominal Resistance:18 - 400 Ω
Number of Measurements:1
Operating Temperature, Max:80 °C
Operating Temperature, Min:-40 °C
Process Temperature, Max:850 °C
Process Temperature, Min:-200 °C
Real Time Recording:The device may be used with PC to monitor and record data in real-time
Samples,Max:670000
Sampling Rate:1 Hz (1 update/second)
Sampling Rate Note:1 reading every second to 1 every 24 hours.
Start Modes:Adjustable Delay Start, Immediate Start, Push-button
Stop Modes:Adjustable Delay Stop, Manual Through Software
Supply Power Type:Battery
Temperature Resolution:0.001 °C
Temperature Sensor Type:RTD
Time Accuracy:± 1 minute/month
Waterbox Depth:39 mm
Waterbox Height:74 mm
Waterbox Width:148 mm
Weight:24 g
Width:56 mm
